CP001

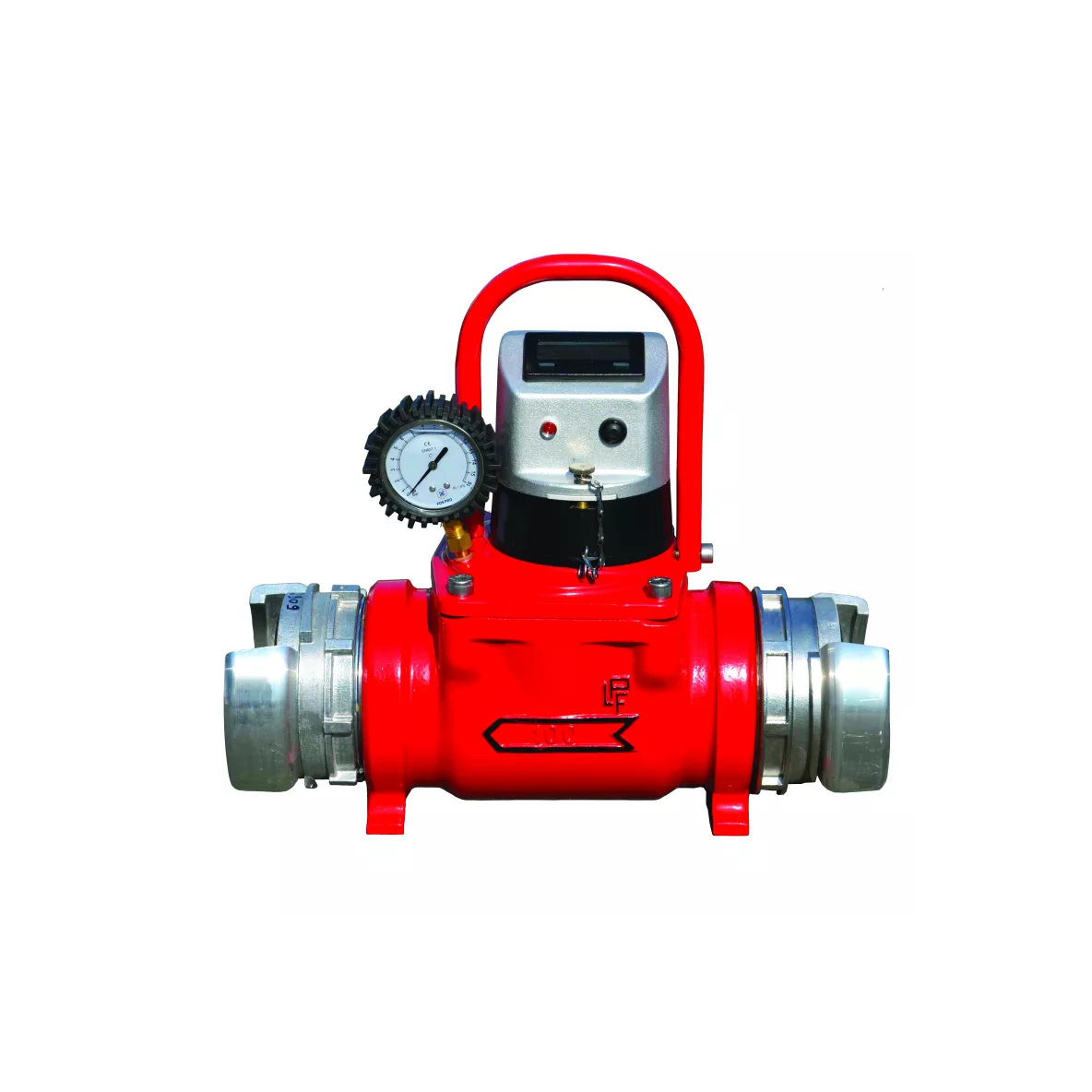

LHENRY CPI2 DN100 MECHANICAL FLOW METER
Mechanical flow meter
Description
The CPI2 meter is based on a WOLTEX type propeller meter (EEC approval no. F 93 00 382 011 0 and F 02 -G 071), the CPI 2 allows the control of flows and pressures on fire hydrants and irrigation hydrants.
It has a maximum flow rate of 300m3/h and 83 l/s, with a meter accuracy of plus or minus 2%.
Display assembly:
- Liquid crystal display of instantaneous flow rate in m 3/h
- An opto-electronic head of the cable sensor type
- The meter totalizer (under the cover) indicating the volume flowed
in m 3
- A battery for powering the cyble sensor
- A battery tester (push button/visor)
Fittings: 2 symmetrical 100 mm diameter locks
Moulded protection grid and stainless steel lock for the inlet pipe
Carrying handle
1 x 9V alkaline battery
12 hours of continuous display time
Caractéristiques
- Dimensions 410 x 180 x 370 mm
- Weight 10 kg
- Diameter 100 mm
