50952

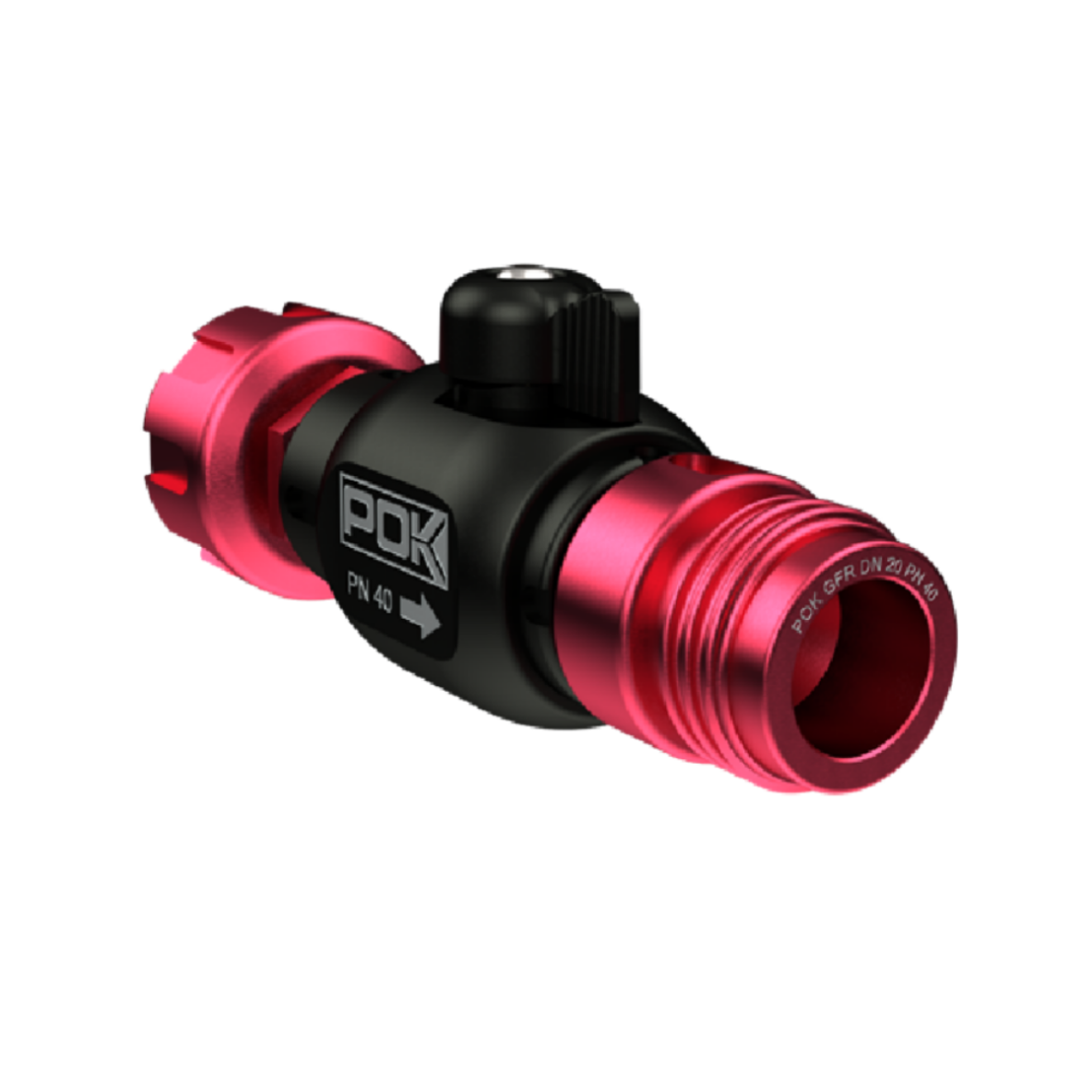

HIGH-PRESSURE SHUT-OFF VALVE PN40 DN20 - GFR THREADED CONNECTION
High-Pressure Shut-Off Valve PN40 DN20 - GFR Threaded Connection
Description
The high-pressure shut-off valve PN40 DN20 provides safe and reliable control of fluid flow under pressures up to 40 bar. Compact and robust, it allows for easy installation and quick operation in a wide range of technical systems.
The aluminum key-handle version ensures optimal grip and precise control of opening and closing, delivering efficient and secure operation.
GFR Threaded DN20 Connection
T
he valve features a GFR threaded connection for fast and secure installation:
-
Inlet: GFR female threaded DN20
- Outlet: GFR male threaded DN20
This connection type ensures compatibility with a wide range of distribution systems and pressurized networks.
Technical Specifications
- Type: High-pressure shut-off valve
-
Nominal pressure: PN40 (40 bar)
-
Passage diameter: DN20
-
Inlet: GFR female threaded DN20
-
Outlet: GFR male threaded DN20
-
Version: Aluminum key handle
-
Weight: 0.81 kg
Caractéristiques
- Weight 0.81kg
- Pression nominale 40 bar
