New
50942

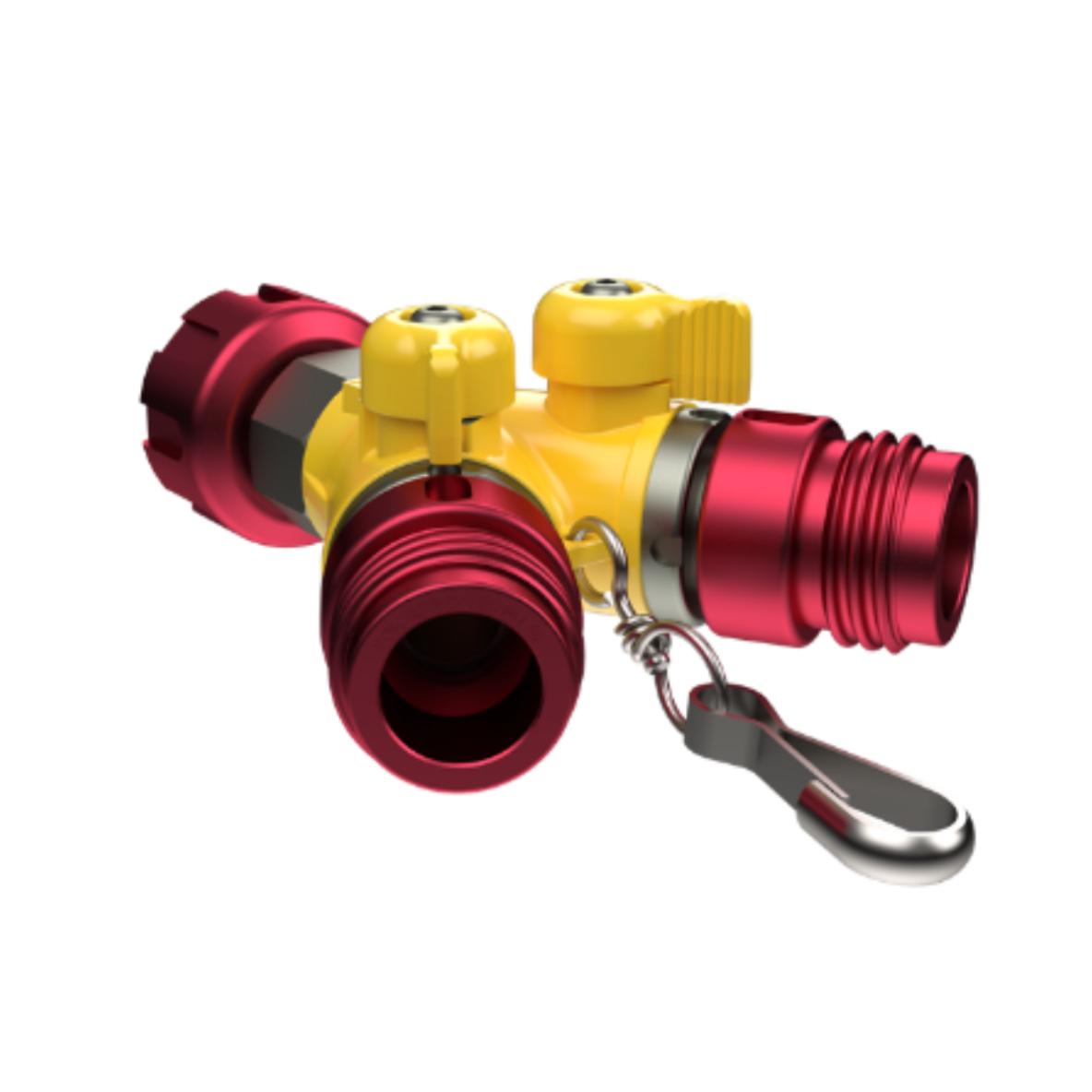

MINI WYE 1/4 TURN DIVIDER VALVE HP 40 BAR - GFR 20 - 2 x MALE GFR 20 ALU PN40
MINI WYE PN40 Division with Key Handles - High-Pressure Aluminum Valve DN20
Description
The MINI WYE PN40 Division with key handles is a compact and robust aluminum valve designed for industrial and fire safety installations requiring optimal flow and maximum reliability. Its first-cast aluminum alloy construction, heat-treated, with a polyester coating, provides high resistance to corrosion and harsh environments.
Technical Specifications
- Valve type: MINI WYE PN40
- Inlet: Female GFR DN20 PN40
-
Outlets: 2 Male GFR DN20 PN40
- Inlet/
Outlet material: Red anodized aluminum
- Full bore design: Ensures optimal flow with minimal pressure loss
- Operation: 1/4 turn, for fast and secure handling
-
Dimensions: 146 x 187 x 75 mm
-
Weight: 0.99 kg
-
Nominal pressure: PN40
Key Advantages
-
Durable and robust material suitable for demanding environments
- Smooth flow guaranteed thanks to the full bore design
-
Easy installation and handling with key handles and quick operation
-
Compact and lightweight for convenient on-site use
Caractéristiques
- Dimensions 146 x 187 x 75 mm
- Weight 0,99 kg
- Pression nominale PN40
