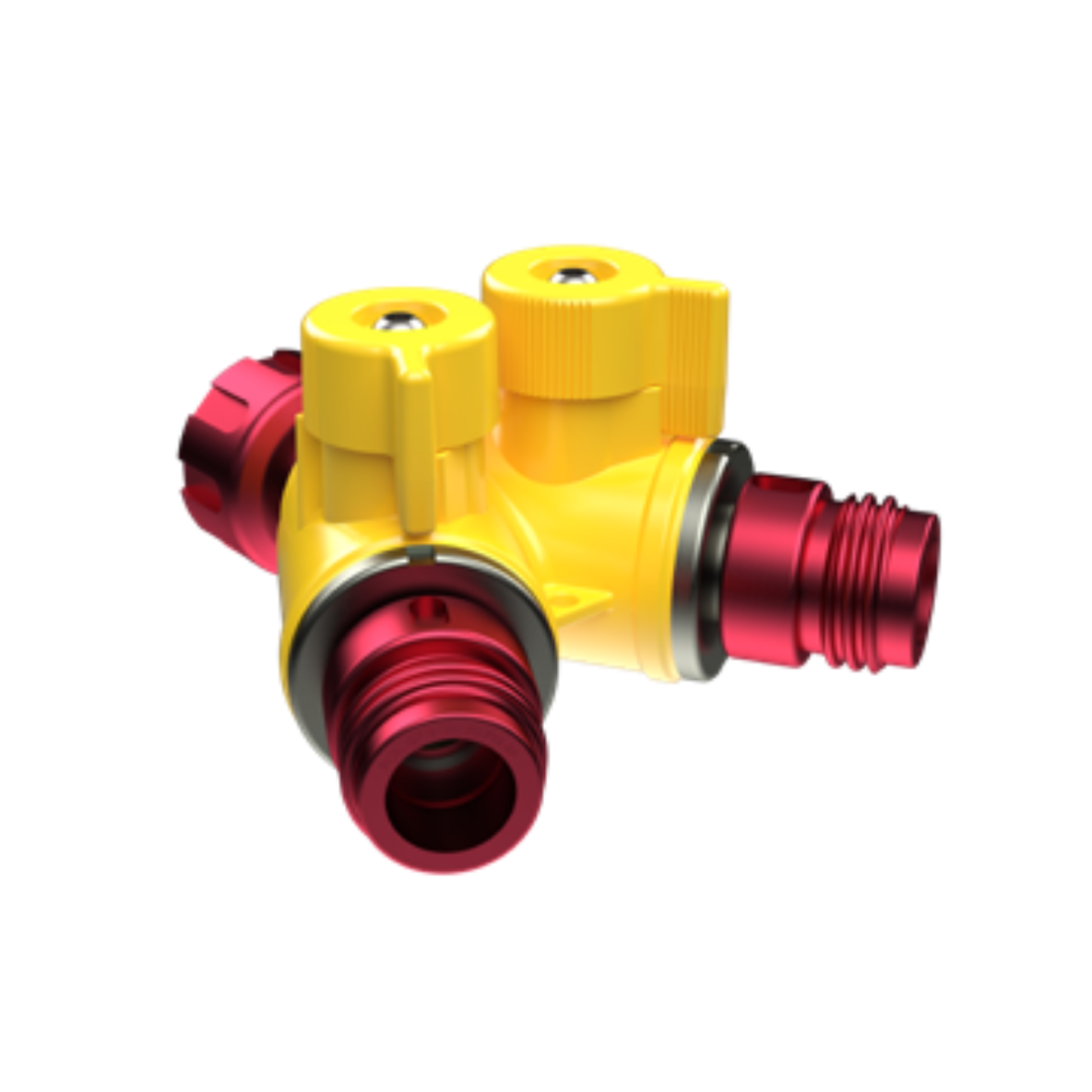

QUARTER-TURN POKET WYE DIVISION YELLOW HP 40 BAR GFR F 20 / 2 x GFR M 20 PN40 ALUMINUM
PN40 POKET WYE Division - High-Pressure Aluminum Firefighting Wye
Description
The PN40 POKET WYE division is designed for firefighting applications and high-pressure water distribution systems. Robust and lightweight, it efficiently splits flow while maintaining optimal performance.
Technical specifications
-
Nominal pressure: PN40
- Inlet: Female GFR DN20 PN40 (aluminum)
- Outlets: 2 x Male GFR DN20 PN40 (red anodized aluminum)
-
Dimensions: 176 x 188 x 102 mm
- Weight: 1.77 kg
- Operation: 1/4 turn valve
- Material: Heat-treated aluminum alloy
-
Body type: Cast
- Surface treatment: Polyester coating (corrosion-resistant)
Performance and reliability
Thanks to its full bore design, this firefighting wye minimizes pressure loss and ensures a consistent, high flow rate. The aluminum construction provides an excellent balance of strength, durability, and reduced weight.
Key benefits
-
High-pressure PN40 firefighting division
-
Low pressure loss for optimal flow
-
Lightweight and durable aluminum construction
-
Quick and easy 1/4 turn operation
- Corrosion resistance
The PN40 POKET WYE division is a reliable solution for efficient water distribution in demanding environments.
Caractéristiques
- Dimensions 176 x 188 x 102 mm
- Weight 1.77 kg
