218250GFRHP
VALVE / SHUT-OFF VALVE HP 40 BAR - GFR F 20 PN40 / GFR M 20 PN40

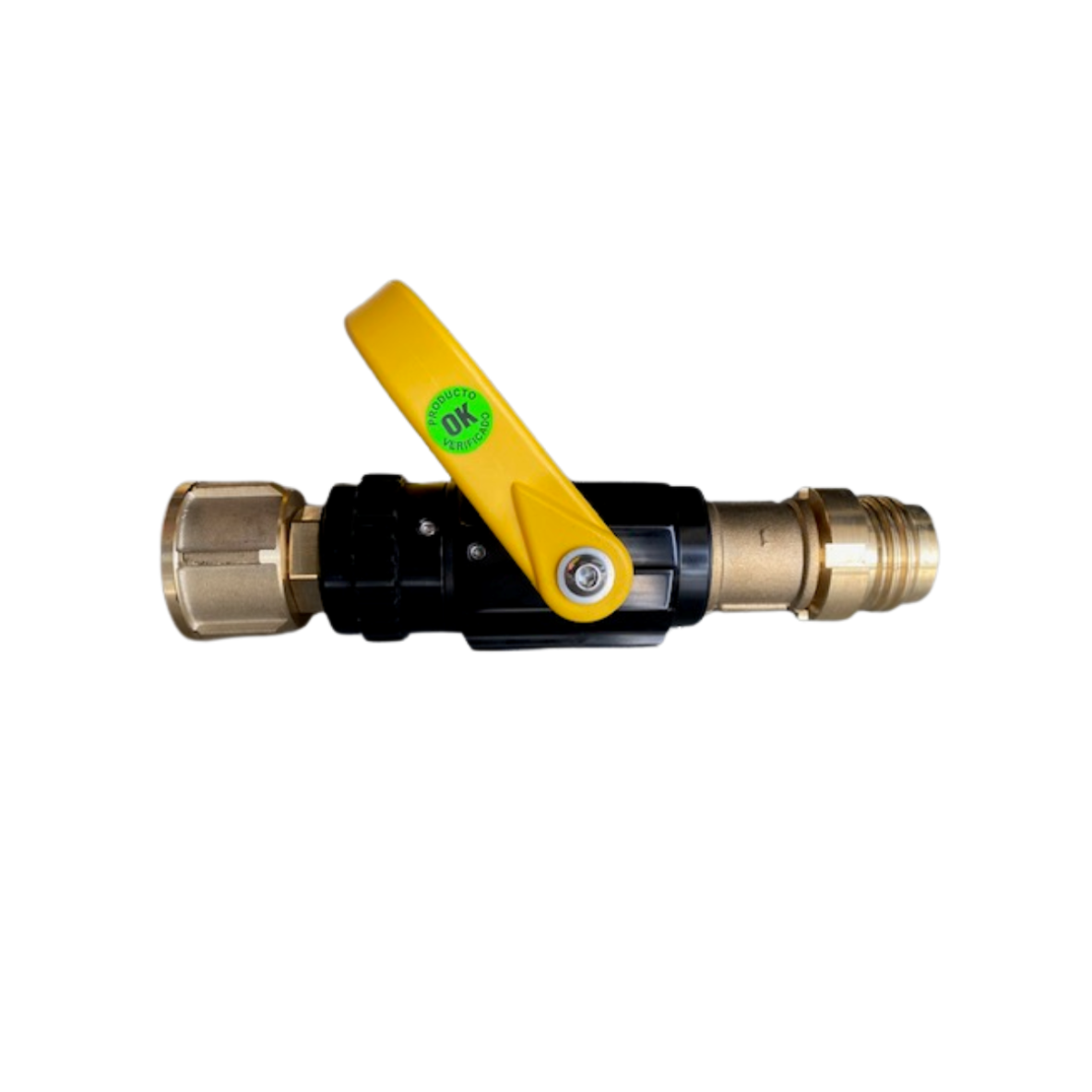

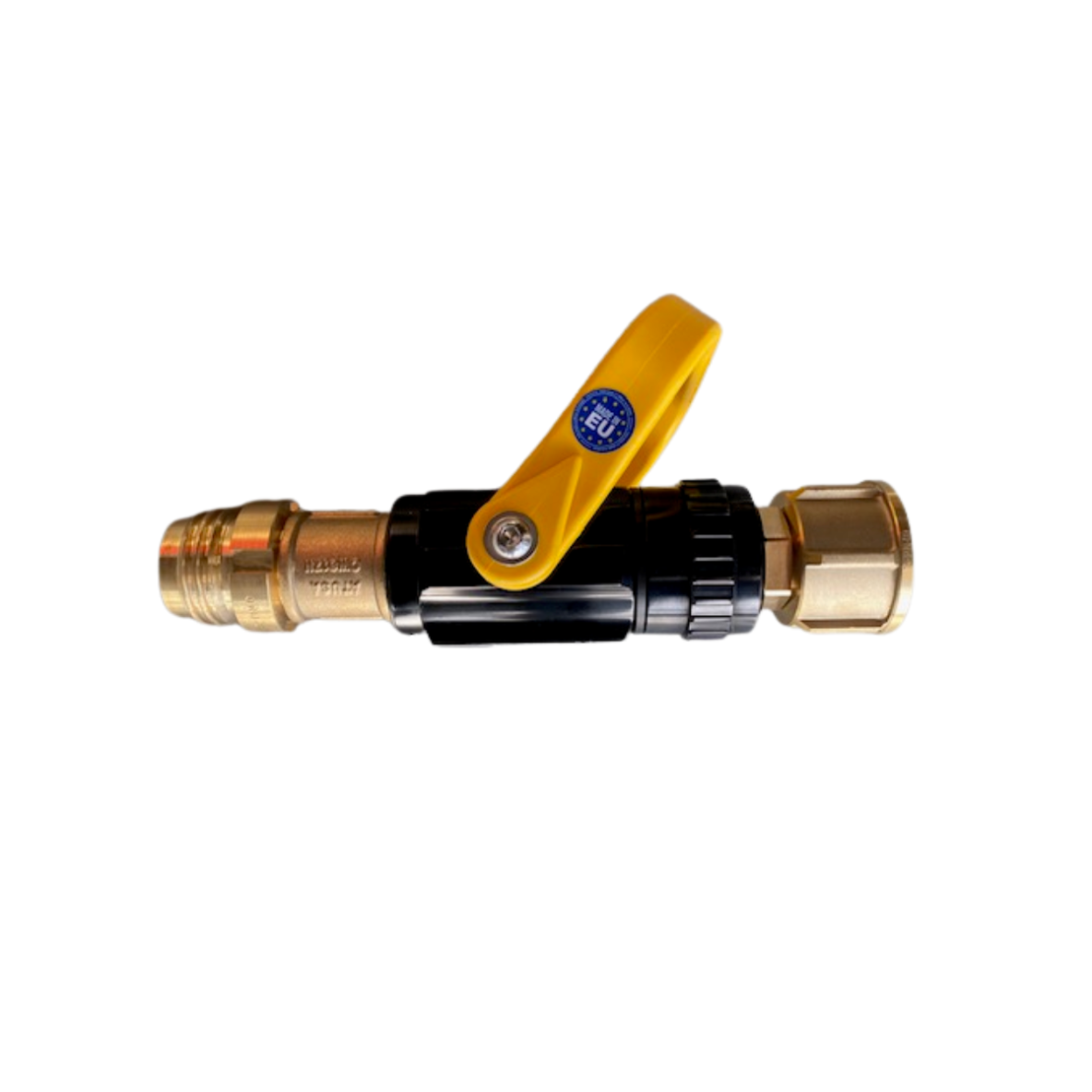

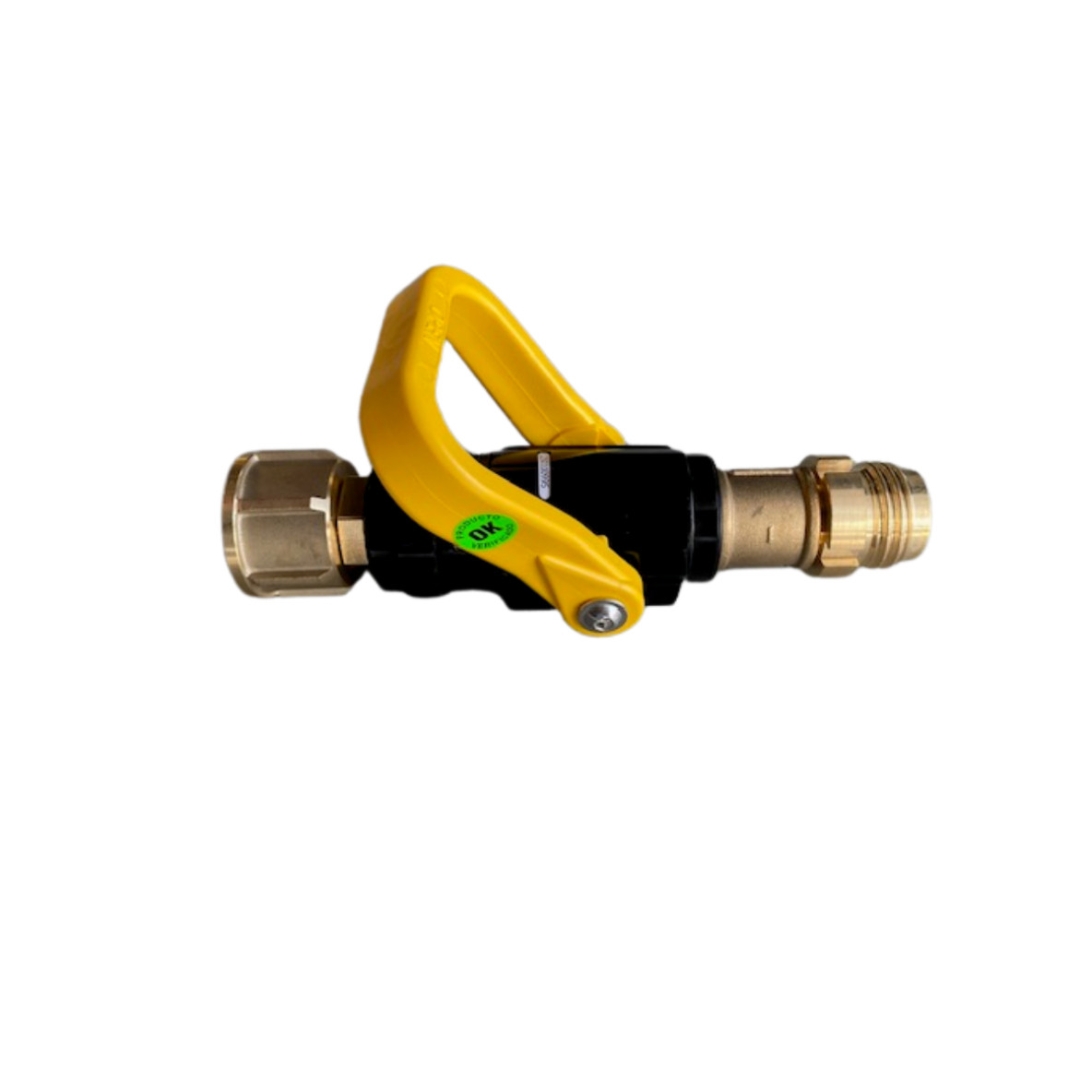

High Pressure Shut-Off Valve 40 Bar - GRF DN20 (GFR F20 PN40 / GFR M20 PN40)
Description
The 40 bar high pressure shut-off valve GRF DN20 is designed to quickly stop the water supply between two hoses during wildfire firefighting operations or in high-pressure hydraulic systems.
Thanks to its full bore design, this high pressure shut-off valve ensures almost zero pressure loss, allowing optimal flow throughout the water supply network.
Manufactured from lightweight and durable aluminum alloy, this 40 bar shut-off valve with GRF DN20 couplings is fitted with high-pressure GRF connectors on both inlet and outlet, ensuring a reliable and quick connection to firefighting hoses.
Its lever handle opening system allows simple, fast, and safe operation in the field.
Technical Specifications
-
Product type: High pressure shut-off valve
- Nominal pressure: 40 bar (PN40)
- Couplings: GRF DN20 (GFR F20 PN40 / GFR M20 PN40)
-
Material: Aluminum alloy
- Opening system: Lever handle
-
Bore: Full bore near zero pressure loss
-
Applications: High-pressure hydraulic networks and wildfire firefighting operations
Caractéristiques
- Material Alliage d'aluminium
- Pression nominale 40 bar
- Ouverture Par poignée de manoeuvre
