600196L
AESIR FLY30 LIGHT KIT WILDFIRE FIREFIGHTING PUMP
High-Pressure Pump for Wildfire Fighting
Description

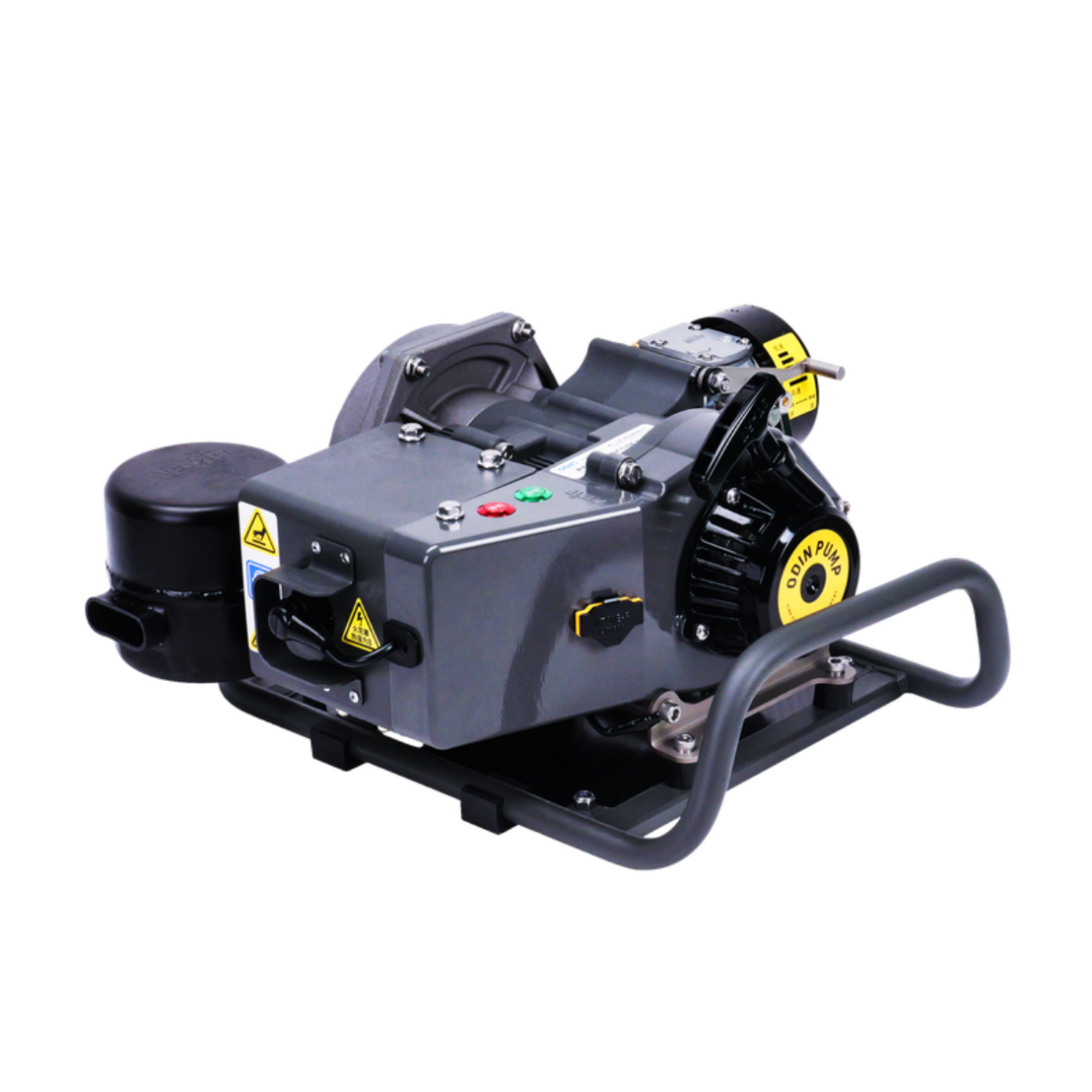

The AESIR FLY30 fire pump is a lightweight, portable high-pressure pump specifically designed for wildfire fighting. Weighing just 9.9 kg and mounted on a tubular frame, it is easy to transport and deploy in difficult terrain.
Powered by an ODIN 11 HP (approximately 8.2 kW) two-stroke gasoline engine running at 7,000 rpm, the FLY30 features a Dual Cooling system combining forced-air and water cooling, as well as a noise-reducing exhaust system. It is equipped with manual starting and an electrical starting connection compatible with an external battery or lithium booster (800 A), available as an option.
Its high-strength, corrosion-resistant aluminum centrifugal pump, fitted with an anodized aluminum impeller, delivers a maximum pressure of 20 bar and a maximum flow rate of 276 L/min. Priming is performed using the supplied aluminum hand pump.
The FLY30 is supplied with a 12-liter fuel tank housed in a dedicated carrying and storage bag, providing up to 4 hours of stated operating autonomy.
Compact and designed for mobile operations, it is an effective solution for professional wildfire response teams.
Technical Specifications

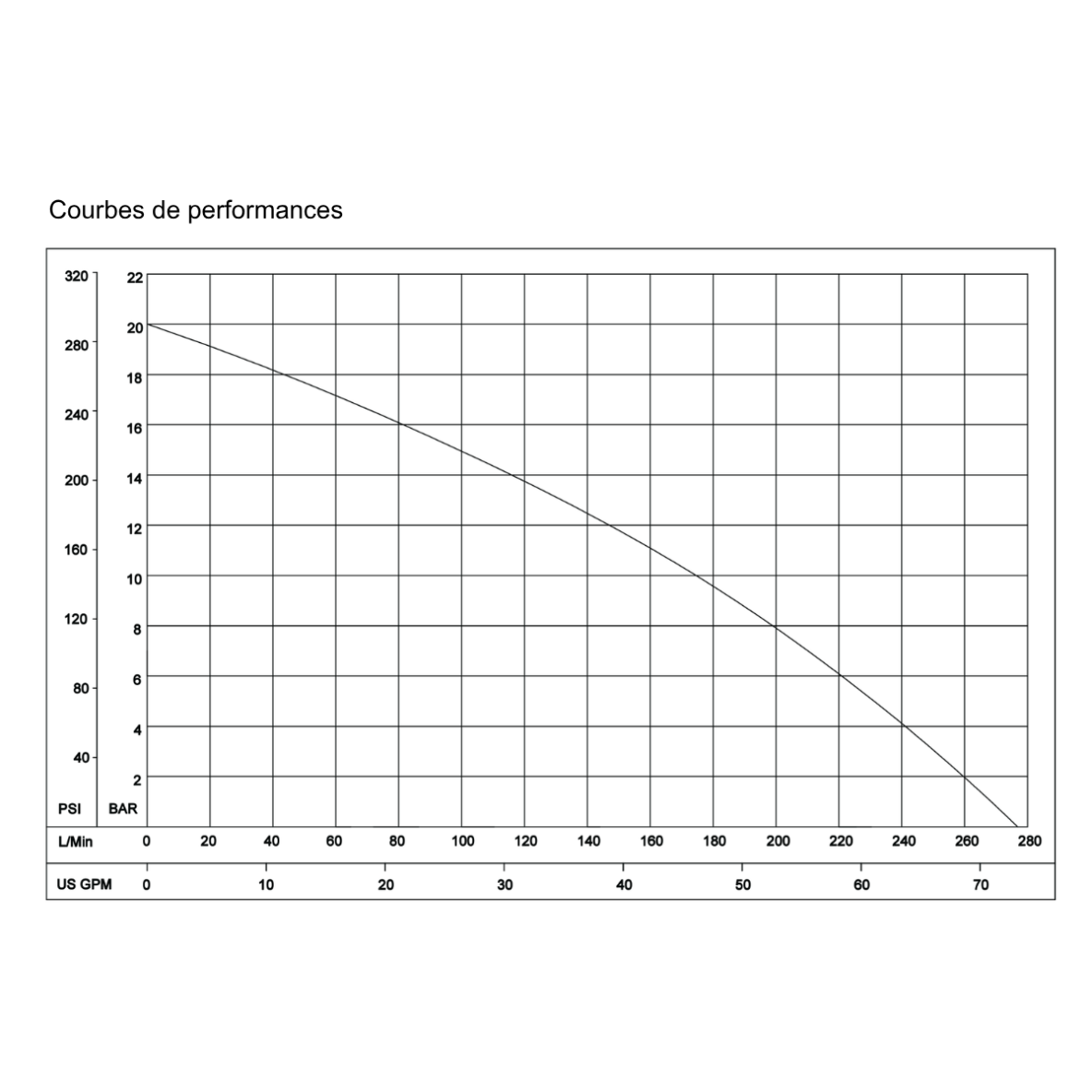

Hydraulic Performance
- Pump type: High-pressure centrifugal pump
- Maximum flow rate: 276 L/min
-
Flow rate at 6 bar: 220 L/min at a suction lift of 1.6 m
-
Maximum pressure: 20 bar
-
Pump body: High-strength, corrosion-resistant aluminum
-
Impeller: Anodized aluminum
-
Priming system: Supplied aluminum hand pump
Engine
- Engine: ODIN single-cylinder, two-stroke gasoline engine
- Power output: 11 HP (approximately 8.2 kW)
- Engine speed: 7,000 rpm
-
Cooling system: Dual Cooling, combining air and water cooling
-
Starting system: Manual start with electrical starting connection
-
Lithium booster (800 A): Available as an option
-
Exhaust: Noise-reducing system
Dimensions and Equipment
-
Weight: 9.9 kg
-
Dimensions (L × W × H): 390 × 362 × 183 mm
- Frame: Tubular
- Inlet: 1/2 SYM 40 coupling
-
Outlet: 1/2 DSP 40 coupling
-
Fuel supply: 12-liter fuel tank
-
Operating autonomy: Up to 4 hours
-
Transport: Carrying and storage bag incorporating the fuel tank
- Fuel supply hose: Pump-to-tank hose with quick-connect fittings
- Documentation: User manual in French
Key Features
- Specifically designed for wildfire fighting.
-
Lightweight and compact, weighing only 9.9 kg.
- High-pressure performance up to 20 bar.
- Maximum flow rate of 276 L/min.
- Dual Cooling air/water cooling system.
- Corrosion-resistant aluminum pump and impeller.
- 12-liter fuel tank providing up to 4 hours of stated autonomy.
- Electric starting capability with compatible optional equipment.
Caractéristiques
- Dimensions 390 × 362 × 183 mm
- Weight 9.9kg
- Maximum flow 276 L/min
