600188L
WILFIRE AESIR VORTEX P7M LIGHT KIT MOTOR PUMP
Fire pump for forest firefighting
Description
The Vortex P7M is a lightweight, high pressure centrifugal pump.
It can draw from a water source (tank, pool, river, etc.), a fire hydrant or be used as a relay.
It is one of the fire engines designed for forest fire fighting that offers the best weight/performance ratio on the market. It is used in hard-to-reach places that fire engines cannot reach.
The unit includes a Dual Cooling system with forced air and water recovery circuit, an exhaust that reduces the perceived sound volume by half, electric start (battery optional) and a manual recoil starter, a digital engine overspeed control switch, and a hand priming pump
An extension for foam injection is available as an option.
TECHNICAL SPECIFICATIONS
Pump
Type: Centrifuge.
Suction: 2 inches BSP male.
Discharge: 1-1/2 inch BSP male.
Body / Impeller: Anodized aluminum alloy, lightweight and highly resistant.
Transmission Shaft: The horizontal transmission shaft of the engine is used to drive the pump. The assembly is protected against corrosion with a bronze sleeve.
Mechanical Seal: Self-adjustable, self-lubricated, specific SiC seat for wear and shock resistance.
Priming: Compact hand priming pump in anodized aluminum alloy.
Engine
Brand: ODIN
Type: Single cylinder, two-stroke gasoline.
Power: 10 HP at 7,000 RPM.
Overspeed Switch: Digital ignition module.
Cooling: Forced air and water
Air Filter: A metal grid protects from impurities.
Fuel Filter: 75 micron fuel filter, integrated into the fuel tank.
Capacity: 135 CC.
Engine Starting: By manual recoil starter and/or electric with optional auxiliary battery.
Fuel Mixture Ratio: Gasoline: oil = 30: 1 (oil must be suitable for 2-stroke engines).
Fuel Tank: 12-liter jerrycan with a hose equipped with quick connectors.

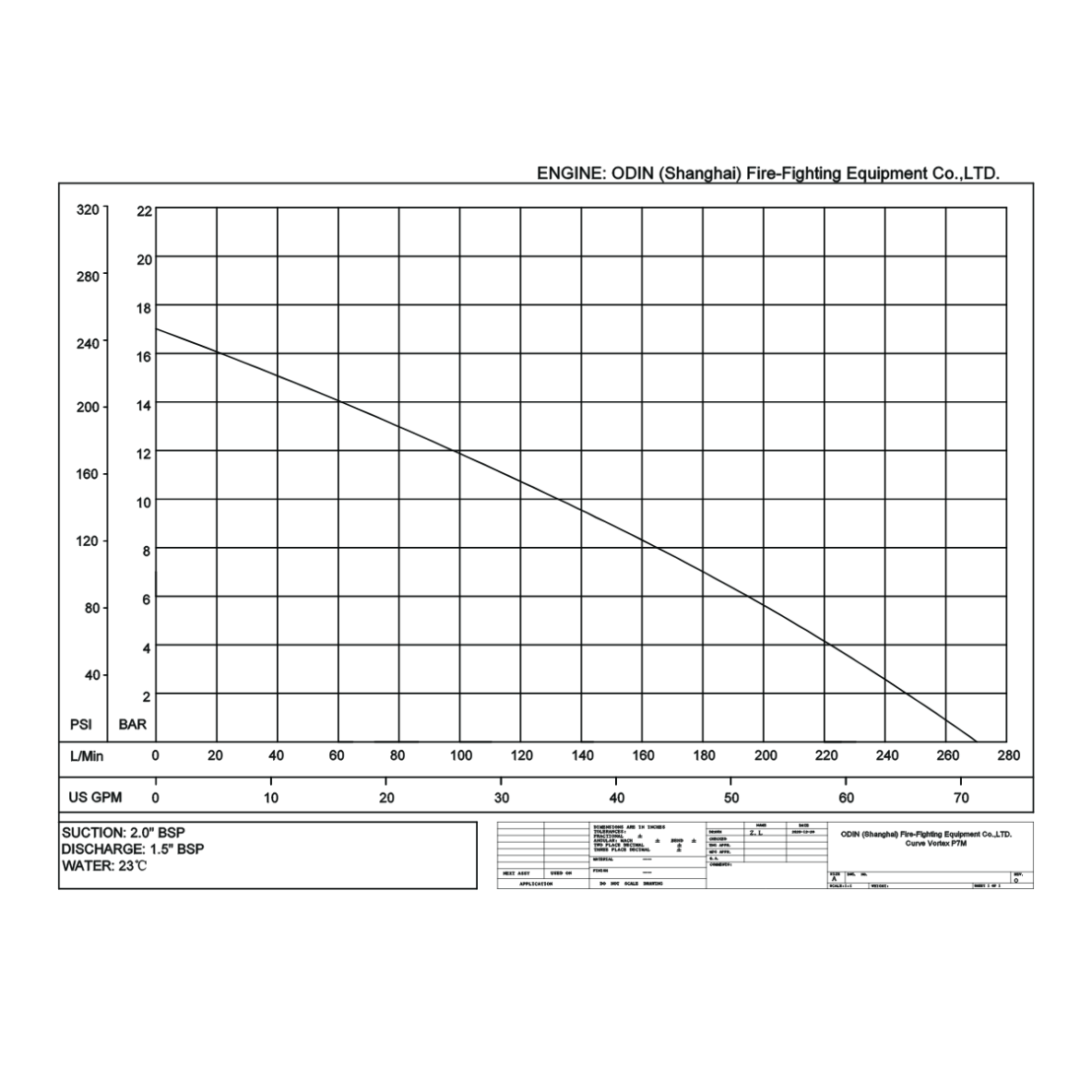

Performance Data (Vortex P7M)
Maximum Discharge Pressure: 17 bar.
Maximum Flow Rate: 270 L/min.
Pump Performance at 3m Suction Height:
195 l/min @ 6 bar
165 l/min @ 8 bar
135 l/min @ 10 bar.
Weight: 10.8 kg.
Dimensions (L x W x H): 340 x 388 x 190 mm (without fittings).
Engine Start: Manual and electric start (battery optional).
Cooling: Forced air and water
Start Time Below 5 Degrees: 3.1 sec.
Fuel Tank: 12 L (4 hours of autonomy).
Caractéristiques
- Weight 10.8 kg
- Discharge pressure Jusqu'à 17 bar
- Maximum flow 270 L/min
