600188ALL1

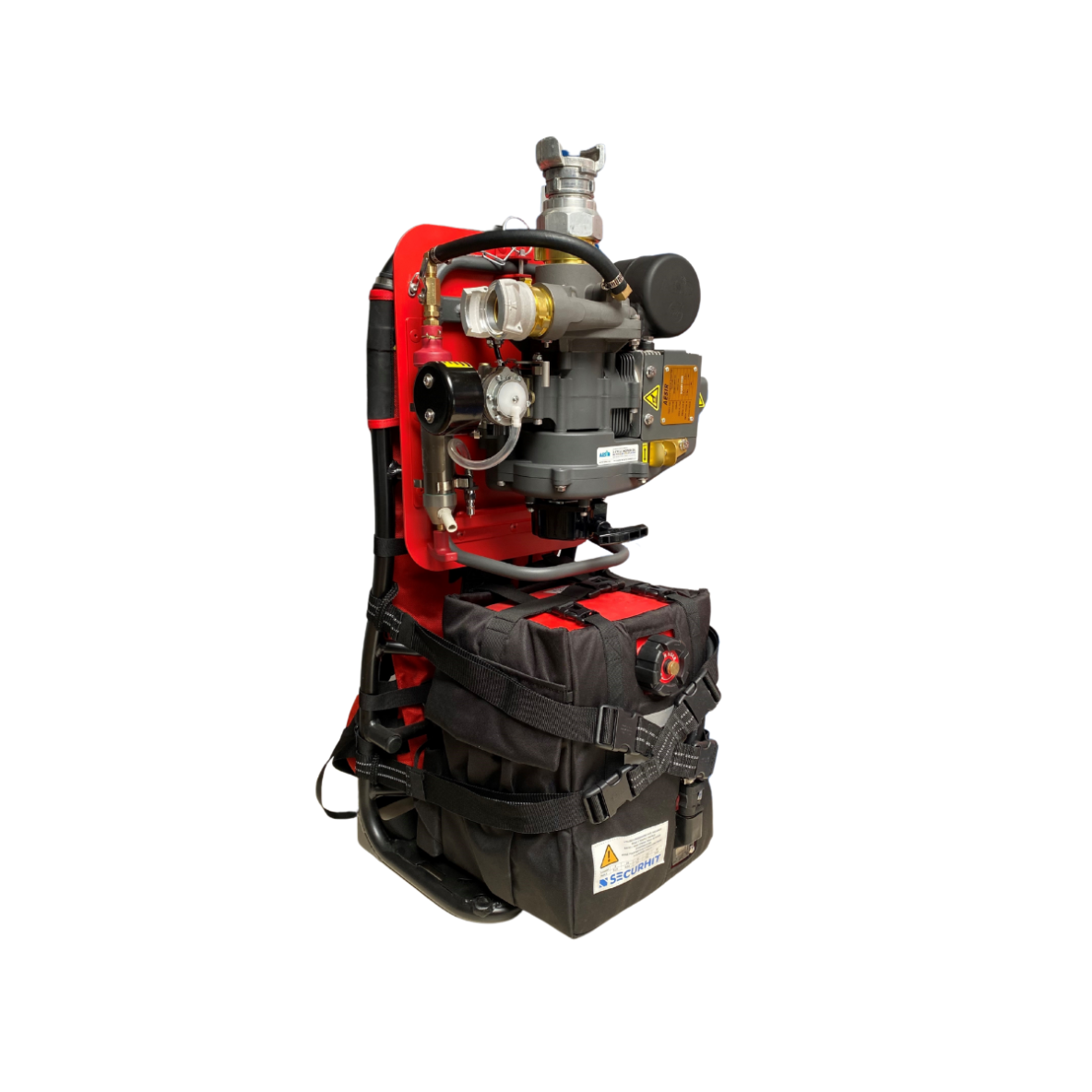

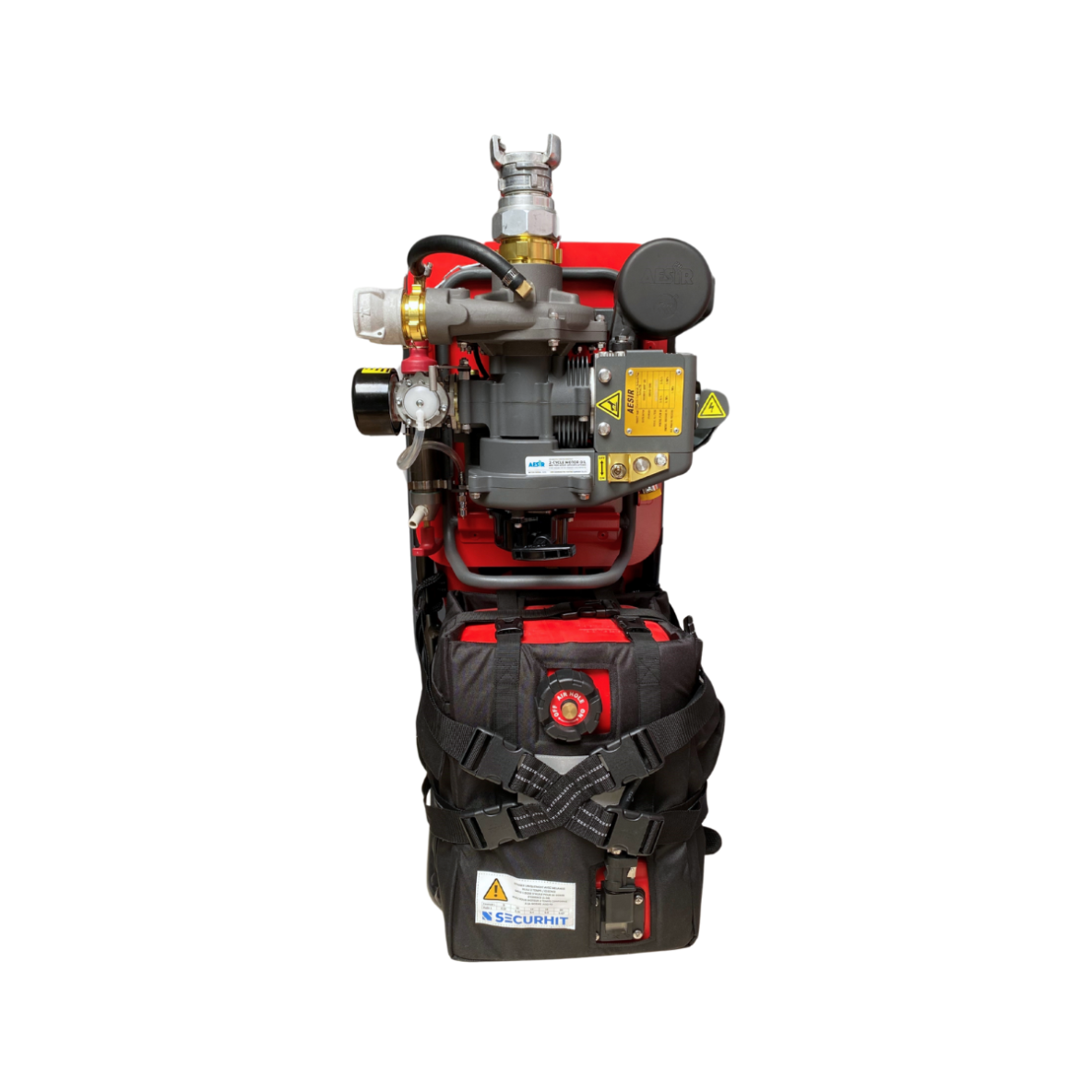

WILDFIRE AESIR VORTEX P7 ALL1 MOTOR PUMP KIT ON SHERPA BACKPACK
Motor pump AESIR VORTEX P7 ALL1 kit on Sherpa backpack
Description
Specially designed for forest firefighting, the ALL1 pack is compact and lightweight, integrating the motor-driven pump and its nurse on a single carrying rack for transport and use by a single operator.
The package, with 12 litres of 2T mix, weight less than 29kg.
Vortex P7M motor-driven pump mounted on a tubular chassis, fixed to a Sherpa carrying rack with a rapid tool-free assembly/disassembly system, equipped with a 10 HP ODIN 2-stroke petrol engine at 7000 rpm air-cooled with manual start and electric start socket (800A lithium battery/booster annex supplied as an option) and a high-strength, corrosion-resistant aluminium centrifugal pump with anodised aluminium turbine, primed by an attached aluminium hand pump.
A Dual Cooling system with forced air and water recovery circuit, an exhaust that reduces the perceived sound volume by half
Maximum pressure 17 bar, 195 l/min at 6 bar and 3 m suction height.
Inlet via 1/2 SYM 40 connection and outlet via 1/2 DSP 40 connection

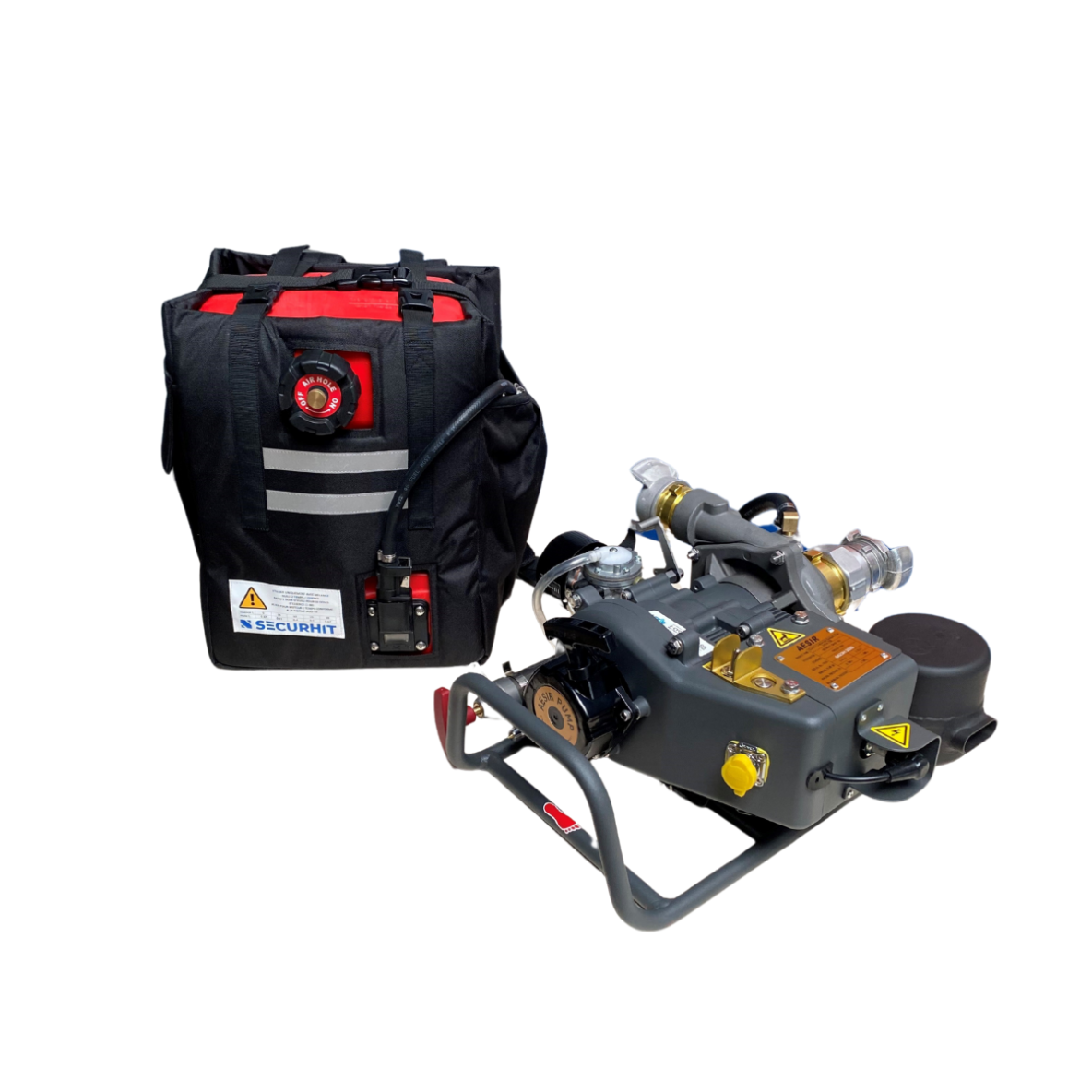

Fuel supply via 12-litre feeder integrated into its storage/carrying bag positioned at the base of the hopper for 4 hours of autonomy.
Pump/feed priming hose with quick-release couplings.
Supplied with French instructions.
TECHNICAL SPECIFICATIONS
Pump
Type: Centrifuge.
Suction: 2 inches BSP male.
Discharge: 1-1/2 inch BSP male.
Body / Impeller: Anodized aluminum alloy, lightweight and highly resistant.
Transmission Shaft: The horizontal transmission shaft of the engine is used to drive the pump. The assembly is protected against corrosion with a bronze sleeve.
Mechanical Seal: Self-adjustable, self-lubricated, specific SiC seat for wear and shock resistance.
Priming: Compact hand priming pump in anodized aluminum alloy.
Engine
Brand: ODIN
Type: Single cylinder, two-stroke gasoline.
Power: 10 HP at 7,000 RPM.
Overspeed Switch: Digital ignition module.
Cooling: Forced air and water
Air Filter: A metal grid protects from impurities.
Fuel Filter: 75 micron fuel filter, integrated into the fuel tank.
Capacity: 135 CC.
Engine Starting: By manual recoil starter and/or electric with optional auxiliary battery.
Fuel Mixture Ratio: Gasoline: oil = 30: 1 (oil must be suitable for 2-stroke engines).
Fuel Tank: 12-liter jerrycan with a hose equipped with quick connectors.

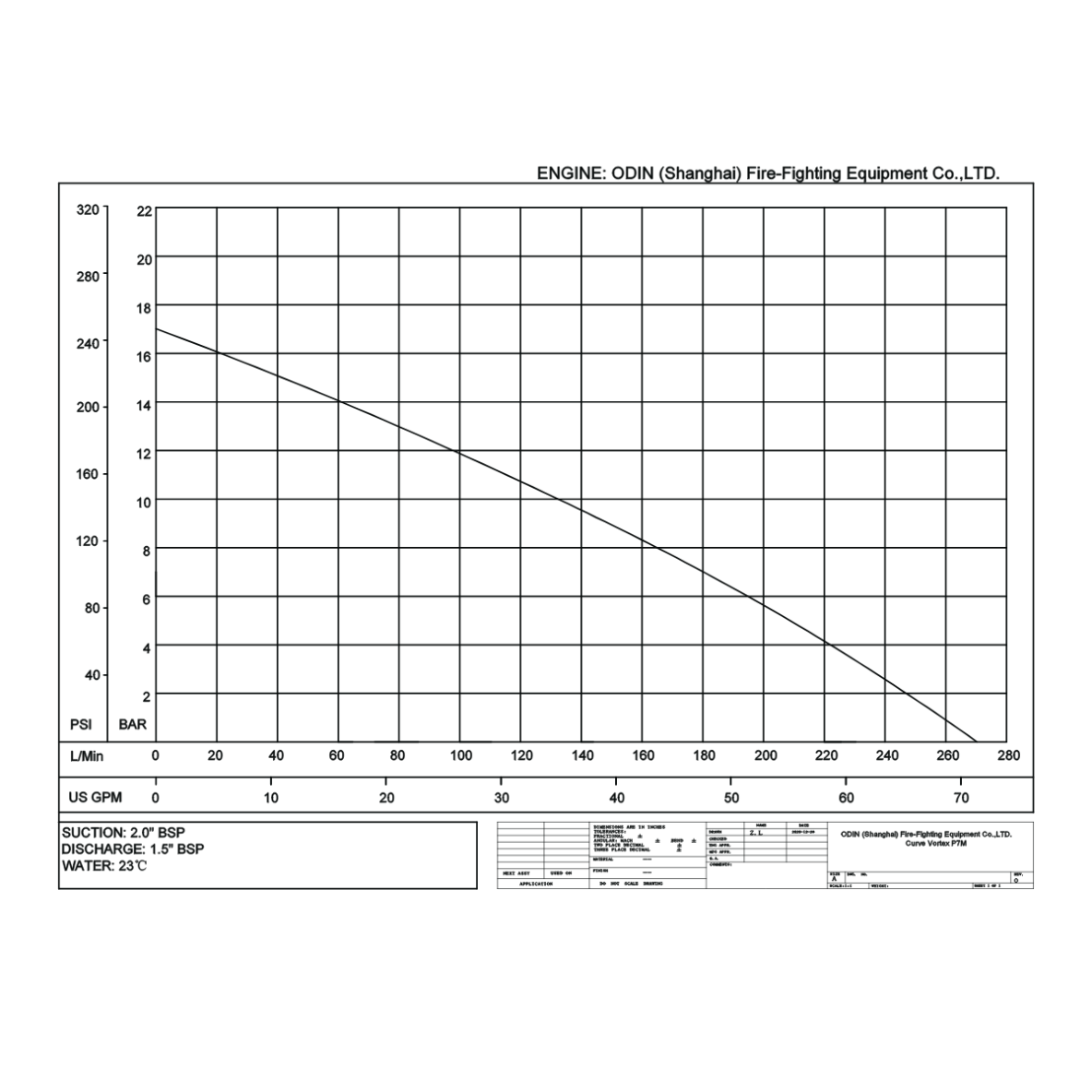

Performance Data (Vortex P7)
Maximum Discharge Pressure: 17 bar.
Maximum Flow Rate: 270 L/min.
Pump Performance at 3m Suction Height:
195 l/min @ 6 bar
165 l/min @ 8 bar
135 l/min @ 10 bar.
Weight: 10.8 kg.
Dimensions (L x W x H): 340 x 388 x 190 mm (without fittings).
Engine Start: Manual and electric start (battery optional).
Cooling: Forced air and water
Start Time Below 5 Degrees: 3.1 sec.
Fuel Tank: 12 L (4 hours of autonomy).
Caractéristiques
- Weight moins de 29 kg
- Maximum flow 270 l/min
