New
600689L
AESIR V300U LIGHT KIT WILDFIRE FIREFIGHTING PUMP
High-Pressure Backpack Fire Pump for Wildland Firefighting
Description

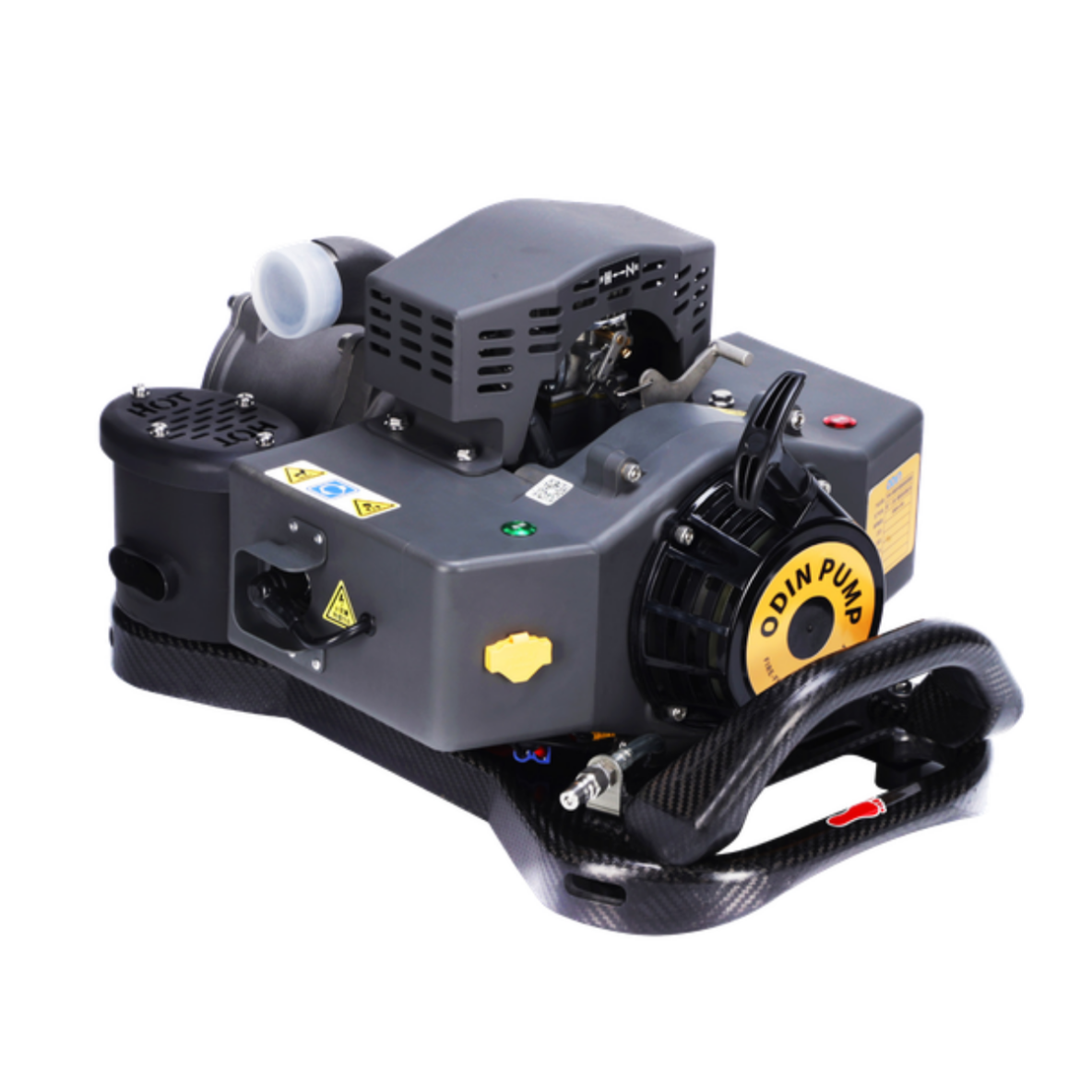

The AESIR V300U LIGHT KIT fire pump is a high-pressure backpack pump designed for professional wildfire and vegetation firefighting teams. Mounted on a carrying frame, it provides a mobile, self-contained and rapidly deployable pumping solution for rural, remote and hard-to-access areas where conventional fire engines may struggle to operate.
Powered by an ODIN 15 HP (approximately 11 kW) two-stroke gasoline engine, the V300U delivers a maximum pressure of 33 bar and a flow rate of up to 330 L/min. Its four-stage centrifugal pump is manufactured from high-strength, corrosion-resistant aluminum and features an anodized aluminum impeller, making it suitable for demanding field operations.
The pump features a combined forced-air and water cooling system, manual starting with an electrical starting connection, and a supplied aluminum hand pump for priming. A 12-liter fuel tank, integrated into the carrying and storage bag, provides a stated operating autonomy of up to 2 hours and 30 minutes.
Compact and designed for demanding terrain, the AESIR V300U LIGHT KIT is a high-pressure pumping solution for professional wildfire response teams.
Technical Specifications
Hydraulic Performance
-
Pump type: Four-stage centrifugal pump
- Maximum pressure: 33 bar (3.3 MPa)
-
Maximum flow rate: 330 L/min
- Flow rate at 6 bar: 275 L/min at a suction lift of 1.6 m
-
Inlet connection: SYM 40 coupling
- Outlet connection: Male GFR PN40 coupling
-
Priming system: Supplied aluminum hand pump
-
Materials: High-strength, corrosion-resistant aluminum with an anodized aluminum impeller
Engine
-
Engine manufacturer: ODIN
-
Engine type: Two-stroke gasoline engine
- Power output: 15 HP (approximately 11 kW)
- Engine speed: 8,500 rpm
- Starting system: Manual start with electrical starting connection
-
Lithium booster (800 A): Available as an option
-
Cooling system: Forced-air and water cooling
- Filtration: Air filter and fuel filter
Dimensions and Equipment
- Weight: 19 kg
- Dimensions (L × W × H): 540 × 420 × 310 mm
-
Carrying system: Backpack frame
- Fuel tank capacity: 12 L, integrated into the carrying and storage bag
-
Operating autonomy: Up to 2 hours and 30 minutes
-
Fuel supply hose: Pump-to-tank hose with quick-connect fittings
- Documentation: User manual in French
Key Features
-
Specifically designed for wildfire and vegetation firefighting.
-
Backpack carrying system for remote and hard-to-access terrain.
-
High-pressure performance up to 33 bar.
- Maximum flow rate of 330 L/min.
- Four-stage centrifugal pump with corrosion-resistant components.
- Powerful 15 HP gasoline engine.
- 12-liter fuel tank with up to 2.5 hours of stated operating autonomy.
-
Electric starting capability with optional compatible equipment.
The AESIR V300U LIGHT KIT wildfire pump combines high pressure, performance and portability to support professional firefighting teams operating in challenging environments.
Caractéristiques
- Weight 19 kg
- Dimensions (L × l × H) 540 × 420 × 310 mm
- Débit maximal 330 L/min
