KTH-100SR
TRASH KTH-100S MOTOR-DRIVEN DRAINAGE PUMP WITH FITTINGS

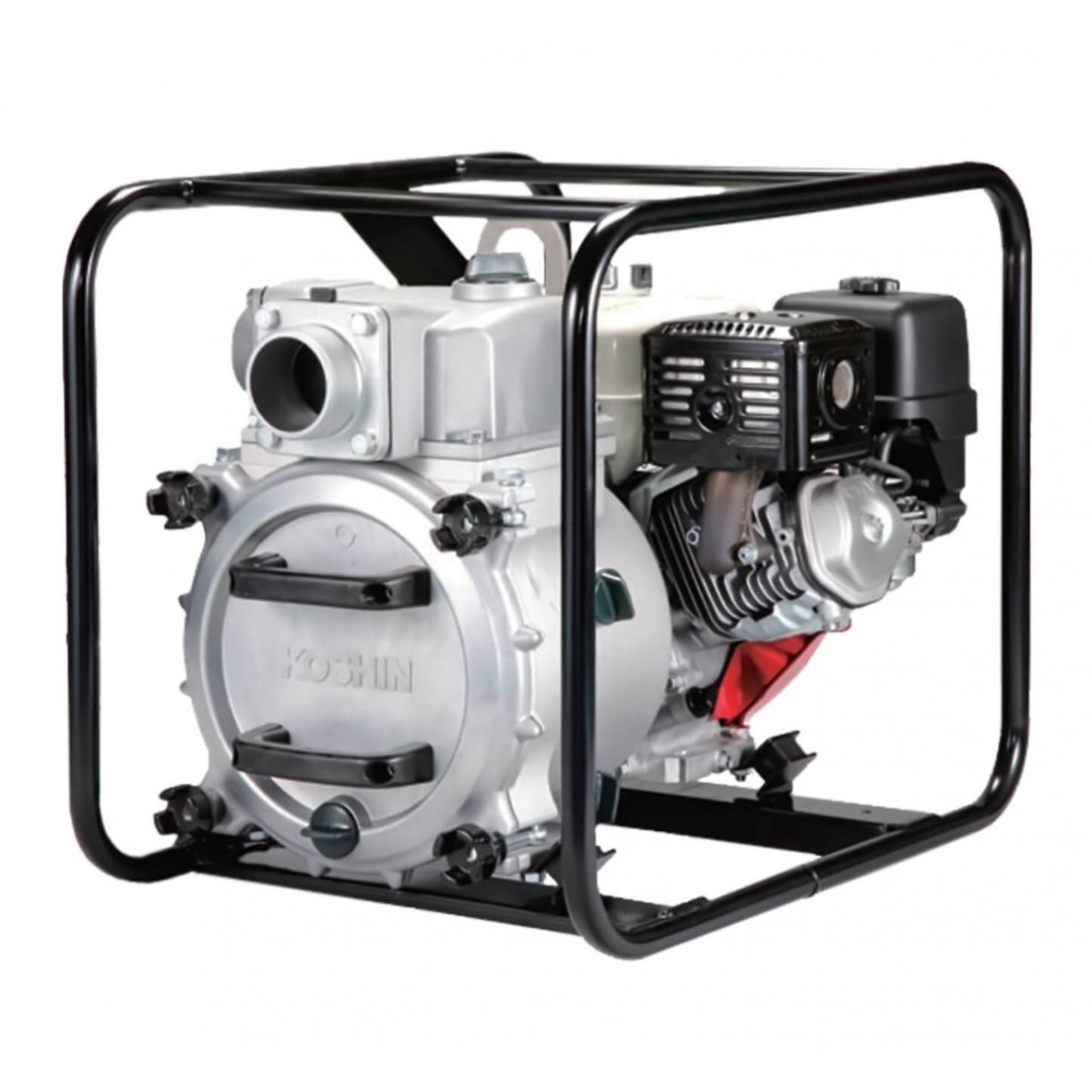

Heavy-Duty Trash Water Pump KTH 100S
Description
The KTH 100S heavy-duty dewatering pump is designed for intensive pumping of heavily contaminated water containing solid particles up to 2730 mm. Built for demanding applications, it combines the reliability of a powerful Honda GX390 engine with a robust graphite-aluminum pump body and a spheroidal graphite cast-iron impeller, ensuring exceptional resistance to abrasion.
With its reinforced construction, high flow capacity (2050 L/min) and significant total head, the KTH 100S delivers efficient and continuous pumping even in the most challenging operating conditions.
TECHNICAL SPECIFICATIONS
ENGINE
- Model: Honda GX390 4-stroke OHV
- Power: 11.8 HP
-
Displacement: 389 cc
-
Oil alert: automatic low-oil shutdown
- Fuel: gasoline
-
Fuel tank capacity: 6.1 L
- Runtime: up to 2 hours
PUMP
-
Type: centrifugal, heavy-duty, self-priming
-
Pump body: graphite aluminum, high resistance
- Impeller: spheroidal graphite cast iron
- Volute: cast iron, wear-resistant
- Maximum particle size: 2730 mm
-
Engineered specifically for heavy-load applications and abrasive environments

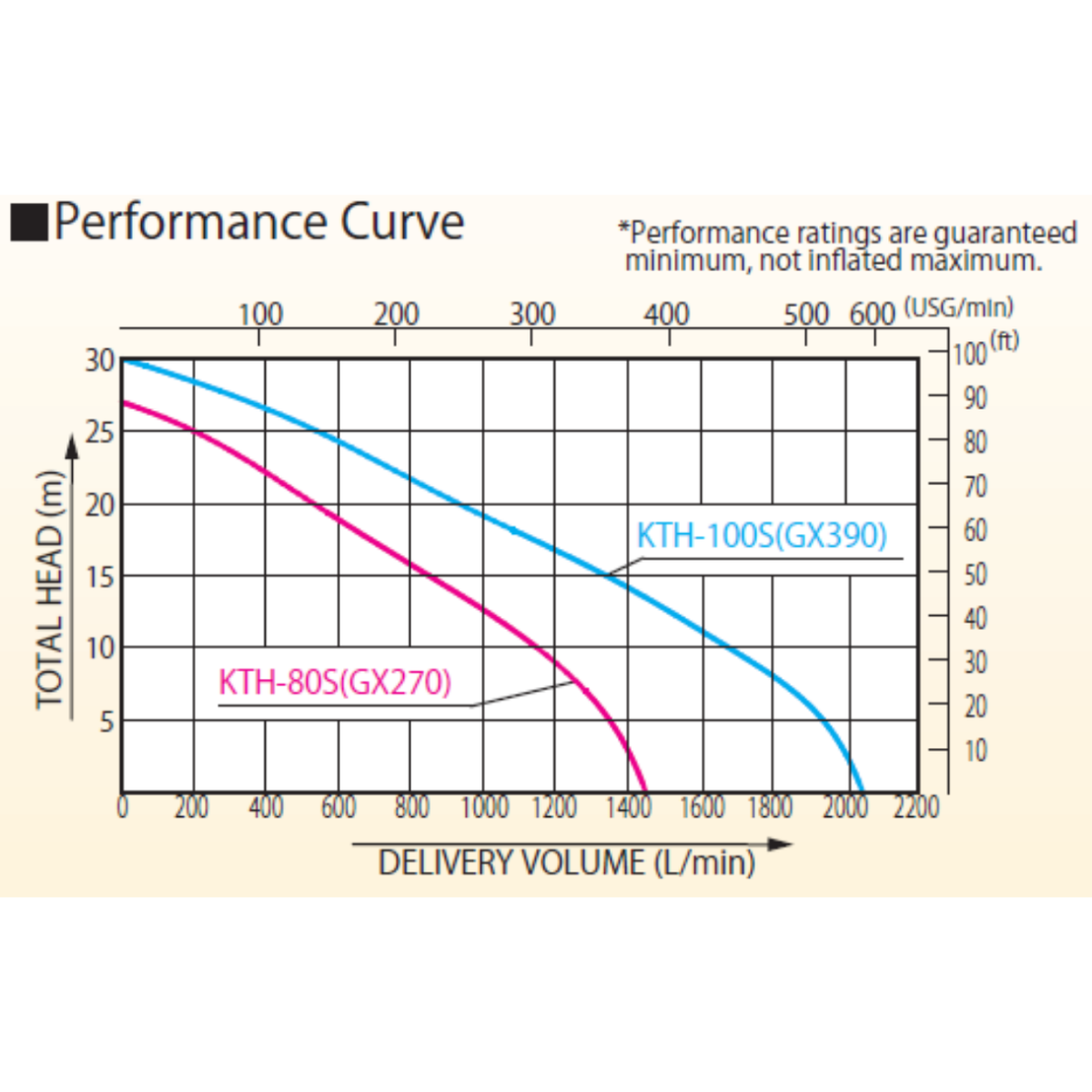

PERFORMANCE
-
Maximum flow rate: 2050 L/min (123 m³/h)
- Maximum total head: 30 m
-
Maximum suction height: 8 m
FITTINGS
-
Suction: G 4" threaded connection
-
Discharge: G 4" threaded connection
-
Frame: reinforced steel chassis, stable and suited for intensive use
DIMENSIONS & WEIGHT
- Dimensions (L × W × H): 78.5 × 58.5 × 63 cm
-
Weight: 86.5 kg
The KTH 100S stands out for its power, high efficiency and ability to handle large volumes of heavily contaminated water. Its robust Honda engine, abrasion-resistant pump components and reinforced chassis make it a reliable choice for intensive dewatering operations. Designed for optimal performance and long-term durability, it is ideal for tough and demanding pumping environments.
Caractéristiques
- Dimensions 78.5 x 58.5 x 63 cm
- Weight 86.5 kg
- Débit maxi 2050 L/min (123 m³/h)
