T6L16A40
ELECTRIC PUMP FOR CHARGED WATER 40 M3/H T6L SINGLE PHASE CONNECTION DSP40 SOCKET 16A

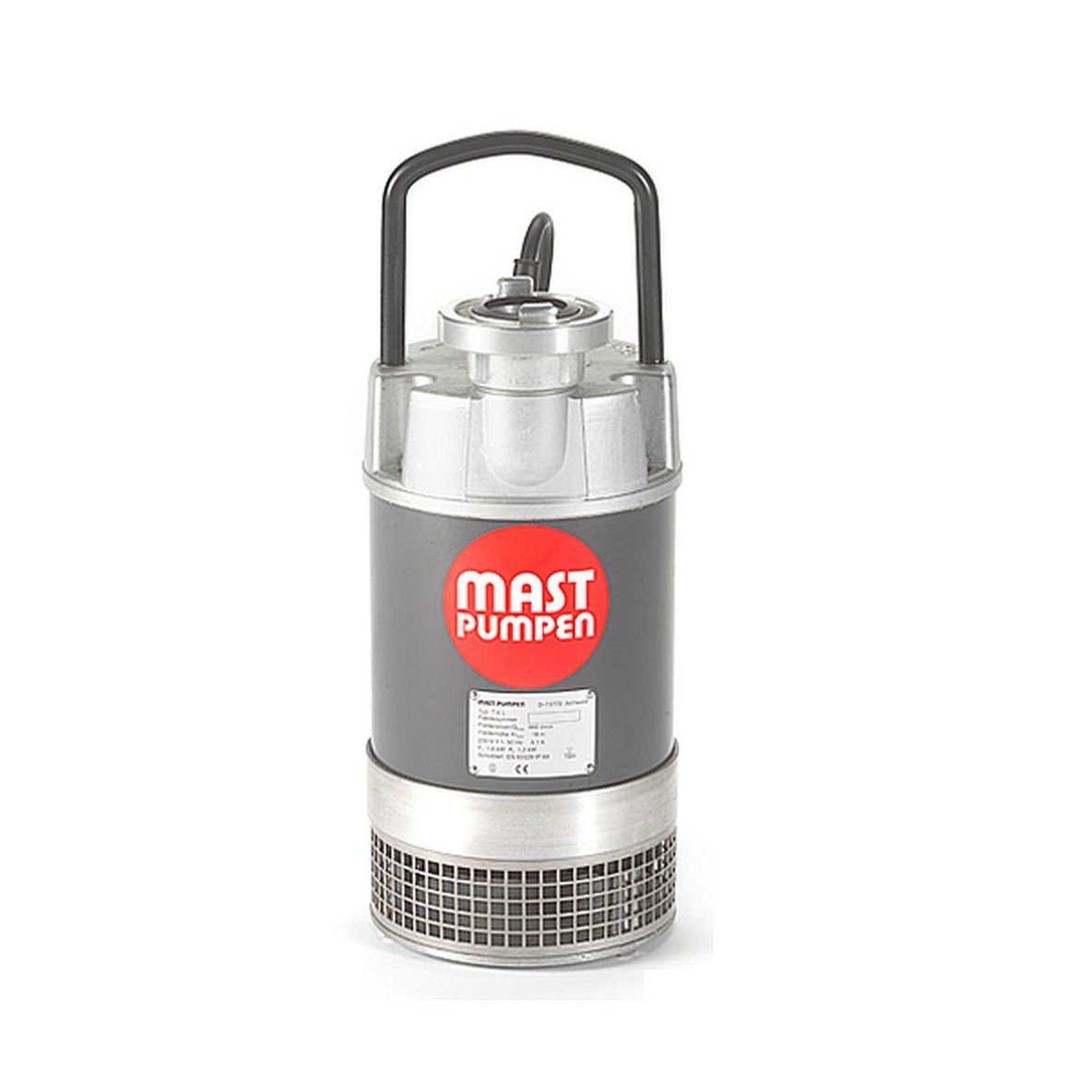

T6L 40m3/h submersible electric pump with DSP40 connection
Description
The T6 L submersible pump is designed for pumping dirty water. It has a standard flat suction device and a motor with thermal winding protection.
High-performance, robust and reliable, it requires no special maintenance. It is protected against running dry and has no oil compartment.
Technical specifications:
- Motor: 1 ~ 230 V AC 50 Hz
- Power P1/ P2: 1.6 / 1.2 kW
- Rated current: 8.1 A
- Total weight: 21 kg
- Dimensions: Ø 190 x H 500 x W 230 mm
- Threads: G 2
- Connections : DSP 45
- Grit size: Ø 8 mm
- Cable: H07RN-F 3 G 1.5 (20 m)
- Socket: Schuko IP 44
- Immersion depth: max 20 m
- Liquid temperature: max + 60°C
- Max density: 1.1 kg/dm³
- pH value: 5 - 8
Caractéristiques
- Matériaux carter moteur Alliage aluminium DIN EN 1706
- Corps de pompe PVC dureté 100
