RSD40016A40
RESIDUE PUDDLE PUMP 11 M3/H RSD-400 WITH CONNECTION DSP 40

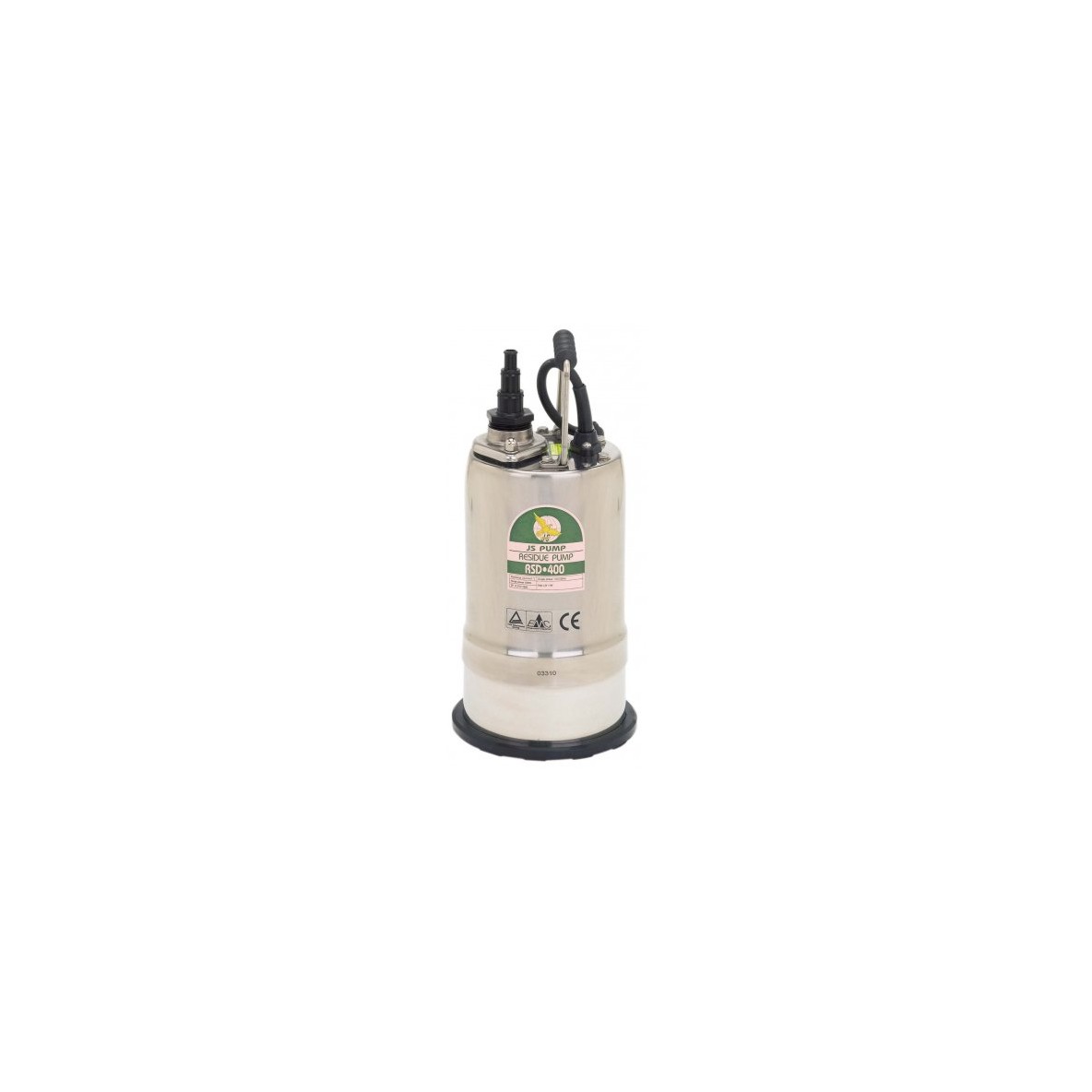

Residue puddle pump RSD400 with connection DSP 40
Description
Ultra-compact, the RSD400 pump fits easily into the tightest spaces, thanks in particular to its top-mounted discharge outlet.
Specially designed for pumping drainage water, wastewater, clear or contaminated floodwater and emergency water, it is easy to handle thanks to its swivel handle.
Construction features: stainless steel body, shaft casing and strainer, cast iron rotor and volute, carbon and ceramic seals in the oil chamber.
TECHNICAL SPECIFICATIONS :
- Power supply 230 volts single phase
- Consumption / power 0.40 kW
- 10-metre cable, HO7 RNF, 10-16A plug
- Integrated thermal protection
- Head 11 metres
- Maximum flow rate 180 l/min (11 m3/hour)
- Granulometry: 5 mm
- Residual water height 5 mm
- Discharge via DSP 40 half-coupling
Complies with standards: EN60 555-2 -3 / IEC 801-2-3-4 / complies with Directive EEC/98/37
Caractéristiques
- Dimensions 37 x 16.7 x 16.7 cm
- Weight 15 kg
