B4M16A40

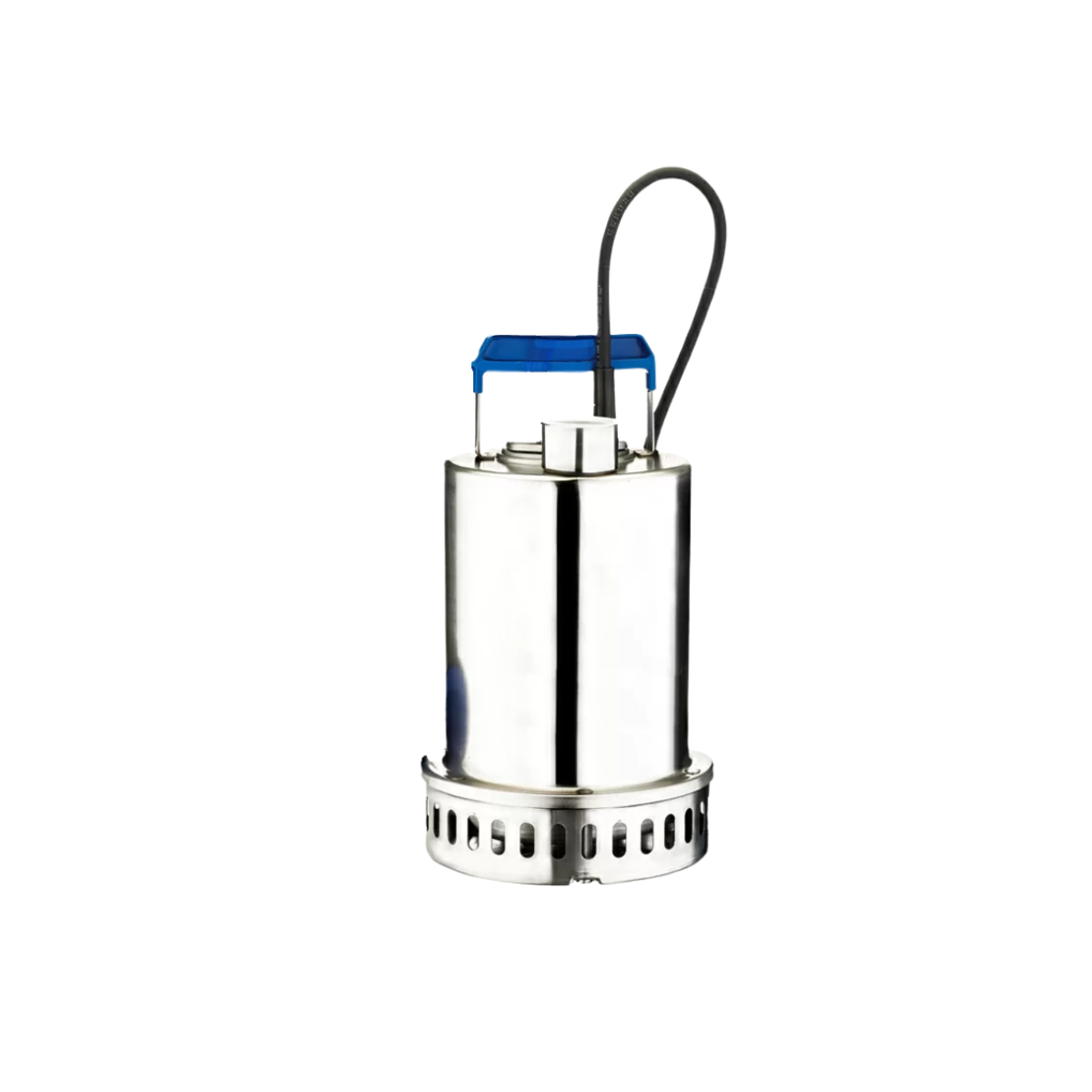

BEST 4 SUBMERSIBLE ELECTRIC PUMP / DSP40 FITTING
BEST 4 Submersible Pump Drainage, Water Lifting & Domestic/Industrial Emptying
Description
The BEST 4 submersible pump is designed for infiltration water lifting, basement, garage, and cellar emptying, as well as small to medium construction site drainage. Versatile, it can be installed as a fixed or mobile system, with or without a float switch, depending on your needs.
Key Benefits:
- Durable AISI 304 stainless steel construction, resistant to corrosion and humid environments
-
Double mechanical seal with oil chamber for maximum reliability
- Single-phase motor with permanent capacitor and built-in thermal-overload protection with automatic reset
-
Supplied with 10 m H07 RN-F power cable
-
Suitable for liquids up to 35°C and solids up to 10 mm
-
Maximum immersion: 7 m

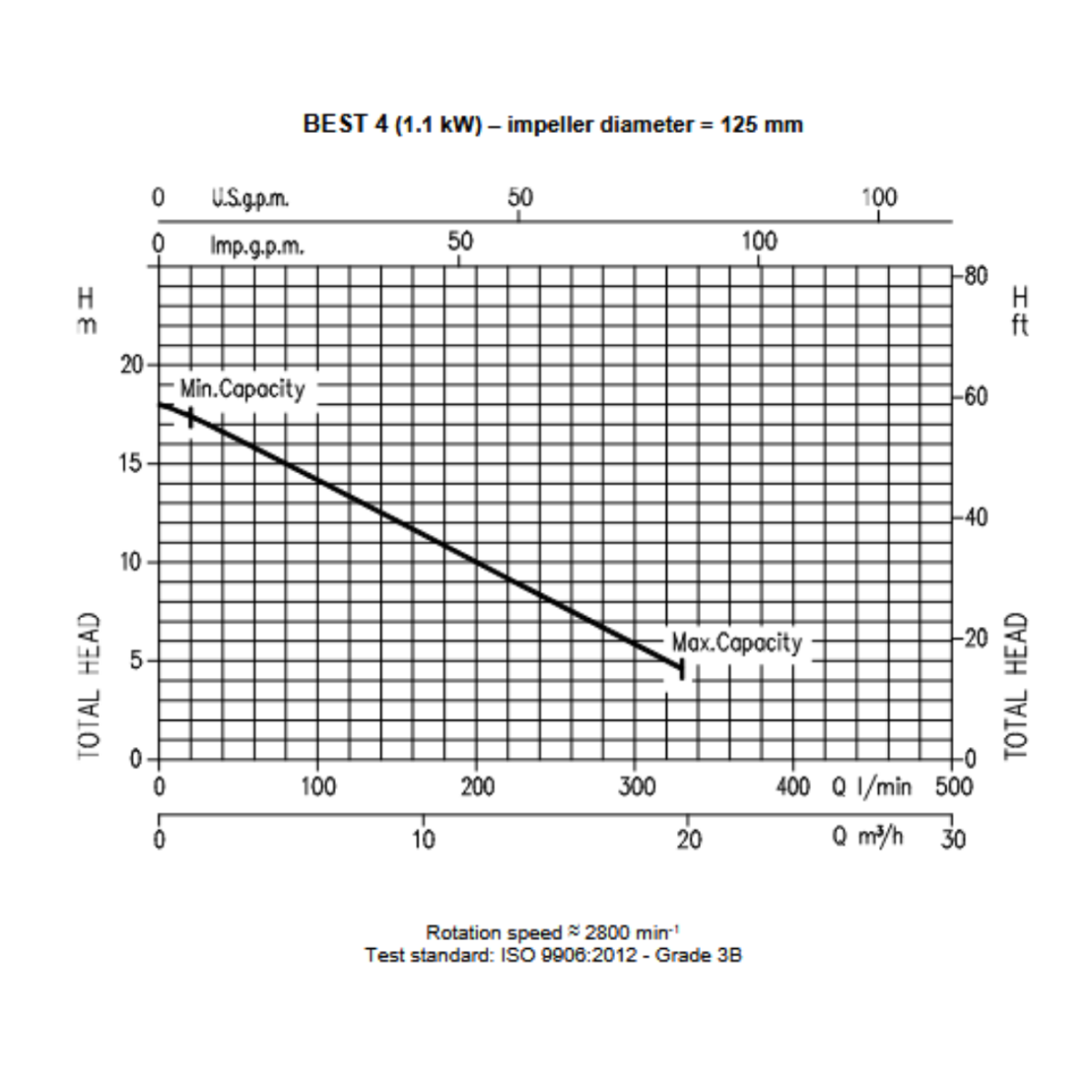

- Maximum head (HMT): 19 m
Technical Specifications:
- Pump body, impeller, suction grille, motor cover, seal support disk, and motor casing: AISI 304 stainless steel (EN 1.4301)
-
Shaft: AISI 303 stainless steel (EN 1.4305)
-
Mechanical seal: upper Carbon/Ceramic/NBR (motor side), lower SiC/SiC/NBR (pump side)
-
Poles: 2
- Insulation class: F
-
Protection rating: IP68
- Voltage: Single-phase 1~230 V ± 10 % / Three-phase 3~400 V ± 10 %
- Maximum solid passage: 10 mm
-
Maximum liquid temperature: 35°C
- Fitting supplied: DSP40
- Maximum flow : 22m³/h
Caractéristiques
- Weight 13.8 kg
- Height 340 mm
- Maximum flow 22 m³/h
