.ATP15RL16A
90 M3/H ATP15RL SINGLE-PHASE WASTE WATER PUMP WITH DSP65 FITTING
Wastewater pump

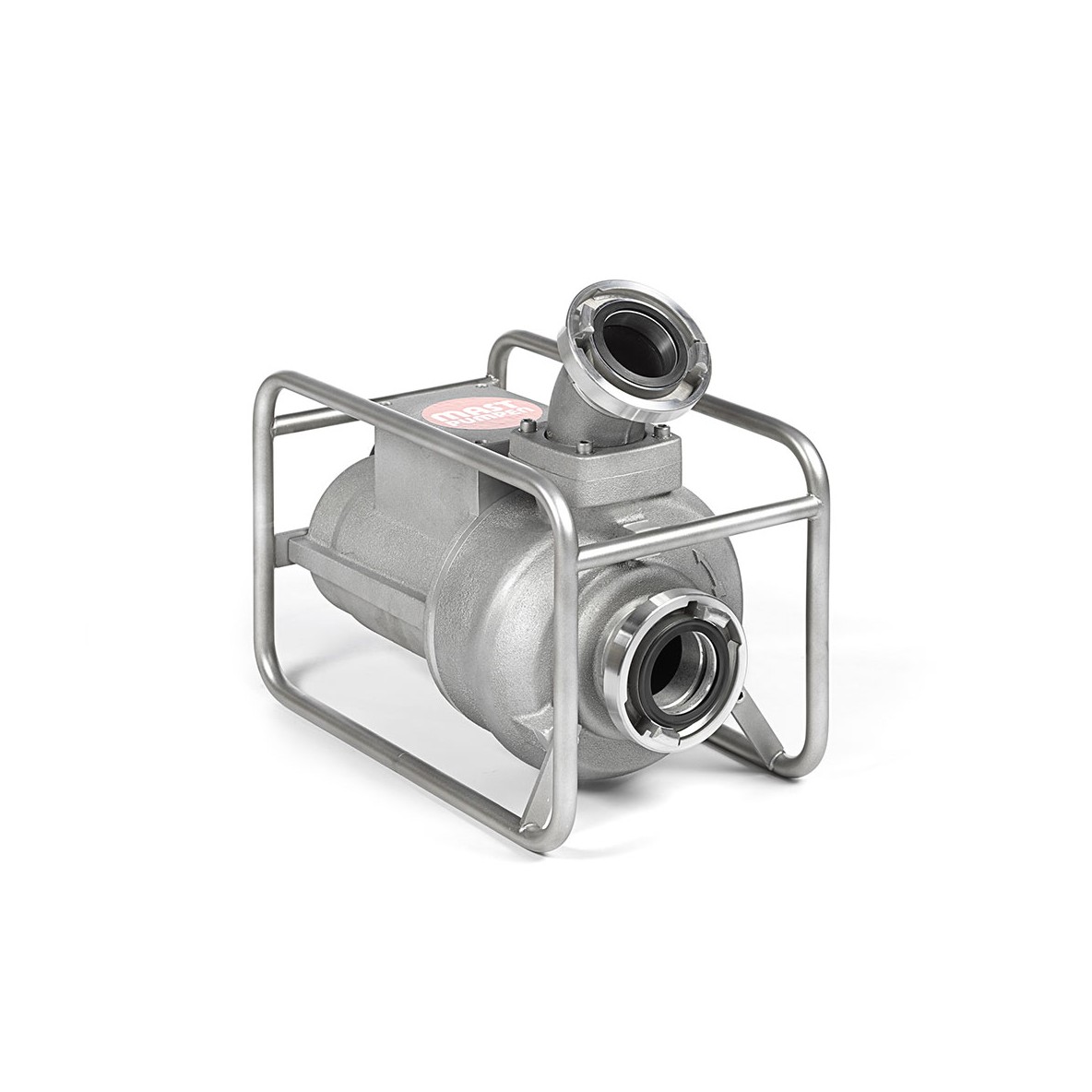

Description
The ATP 15 RL submersible pump is designed for pumping untreated wastewater, containing particles and solids up to 65 mm in diameter. With its 230 V electric motor and clog-free operation, it can be installed submersed or dry, ensuring efficient and continuous pumping even with heavily loaded water.
Suitable for mobile applications, it can be connected to rigid or flexible hoses to discharge water effectively.
TECHNICAL SPECIFICATIONS
MOTOR
-
Power supply: 230 V / 50 Hz
- Power P1: 2.7 kW
-
Rated current: 13.0 A
-
Maximum immersion depth: 20 m
-
Maximum fluid temperature: 60 °C
-
Maximum fluid density: 1.1 kg/dm³
-
pH range: 5 8
PUMP
-
Maximum flow rate: 1500 L/min
-
Maximum total head: 20 m (2.0 bar)
-
Free passage diameter: 65 mm
-
Connections: G 3" / G2.5" (suction / discharge)
-
Storz connection: Storz B
- Operation: submersible, clog-free, flat suction possible
-
Installation: portable, series connection possible
CABLE AND PLUG
-
Power cable: H07 RN-F 3G 1.5, 20 m
- Plug options: 16 A plug or Marechal DS1
DIMENSIONS AND WEIGHT
-
Dimensions (L × W × H): 46 × 26 × 43 cm
-
Weight: 37 kg
The ATP 15 RL stands out for its power, reliability, and ability to efficiently pump solids-laden wastewater. Its 65 mm free passage and 230 V motor enable continuous, clog-free operation, whether submerged or installed dry, for industrial, municipal, or residential wastewater applications.
Caractéristiques
- Dimensions 46 x 26 x 43 cm
- Weight 37 kg
