GH5020

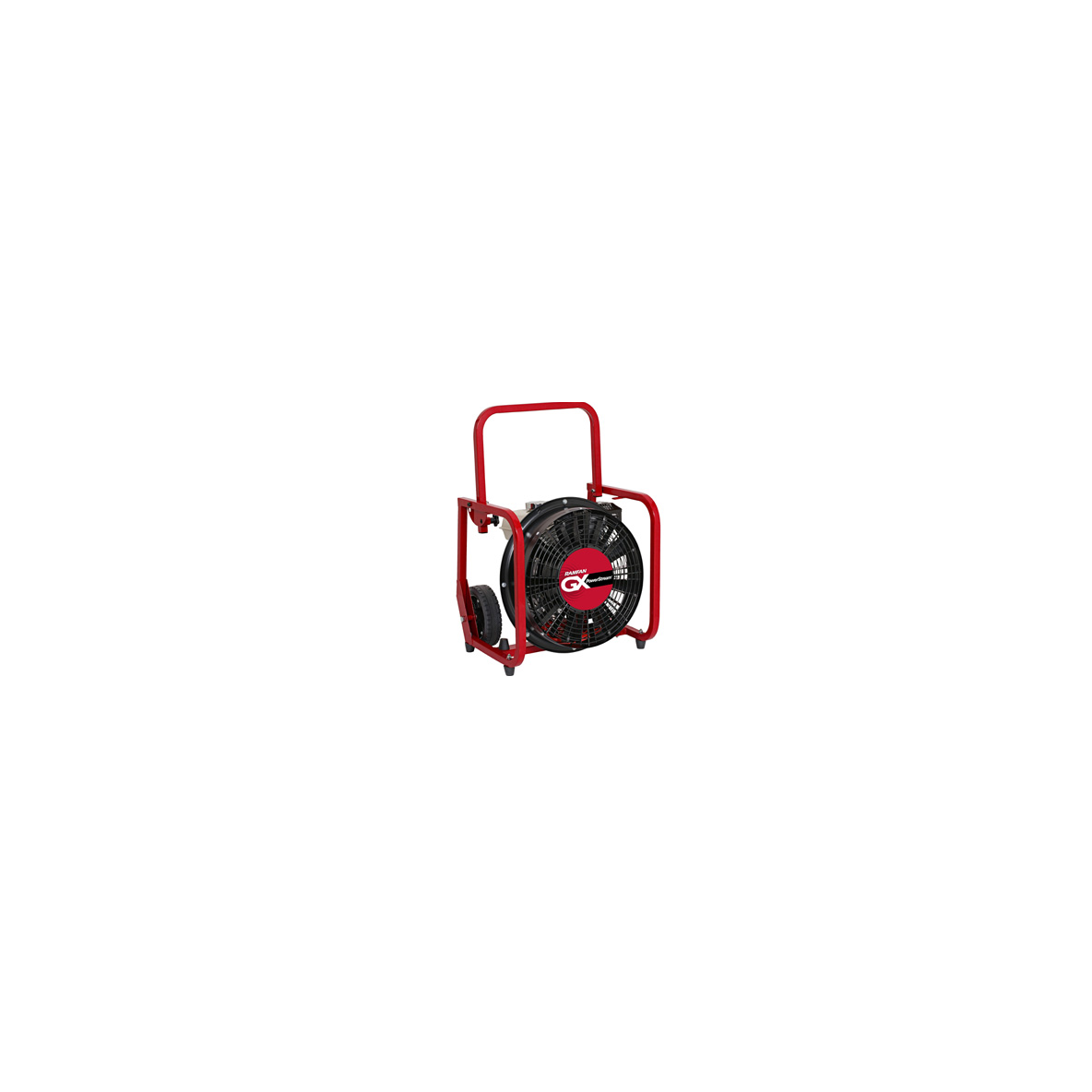

GX350 SMOKE EXTRACTION FAN
GX350 smoke extraction fan
Description
The Ramfan GX350 is a new generation fan with an unbeatable size/flow/weight ratio, can be operated by one person and is equipped with the Honda GX200 4-stroke engine.
Powershroud technology combines the blower effect of the impeller with the focused air mass effect of the cone, guided by the stator grille. Thanks to this technology, the fan can be placed further away from the entrances and thus facilitate the traffic of fire-fighting personnel and equipment.
The precision and concentration of the air stream also allows the use of smaller openings.
New motorisation with the Honda GX200, 5.5 HP, with an autonomy of 1h50mn. 9-blade turbine, producing an actual airflow of 31,799 m3/hour (AMCA validation).
Mounting the guard on the motor instead of the chassis greatly reduces vibration and prevents the fan from moving on slippery or wet floors.
Patented and exclusive foot tilt adjustment system, puncture-proof wheels and urethane glides. Very compact, the GX350 will fit in any trunk or locker.
3 years guarantee.
Certified flow measurements according to AMCA method.
Powershroud technology combines the blower effect of the impeller with the focused air mass effect of the cone, guided by the stator grille. Thanks to this technology, the fan can be placed further away from the entrances and thus facilitate the traffic of fire-fighting personnel and equipment.
The precision and concentration of the air stream also allows the use of smaller openings.
New motorisation with the Honda GX200, 5.5 HP, with an autonomy of 1h50mn. 9-blade turbine, producing an actual airflow of 31,799 m3/hour (AMCA validation).
Mounting the guard on the motor instead of the chassis greatly reduces vibration and prevents the fan from moving on slippery or wet floors.
Patented and exclusive foot tilt adjustment system, puncture-proof wheels and urethane glides. Very compact, the GX350 will fit in any trunk or locker.
3 years guarantee.
Certified flow measurements according to AMCA method.
Caractéristiques
- Dimensions 550 x 550 x 500 mm
- Weight 38 kg
