EG8200CE
FAN / SMOKE EXTRACTOR 16" EFI 150

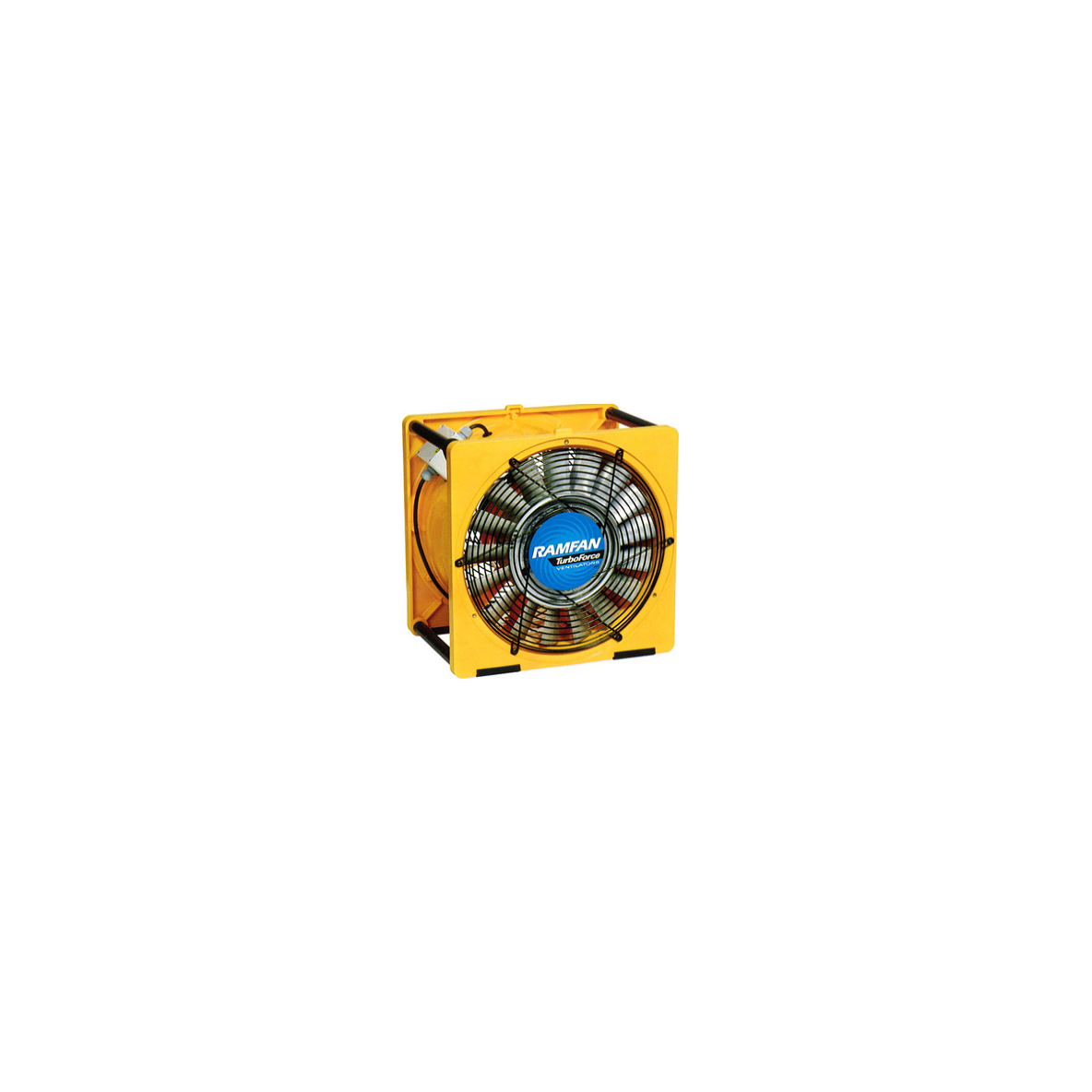

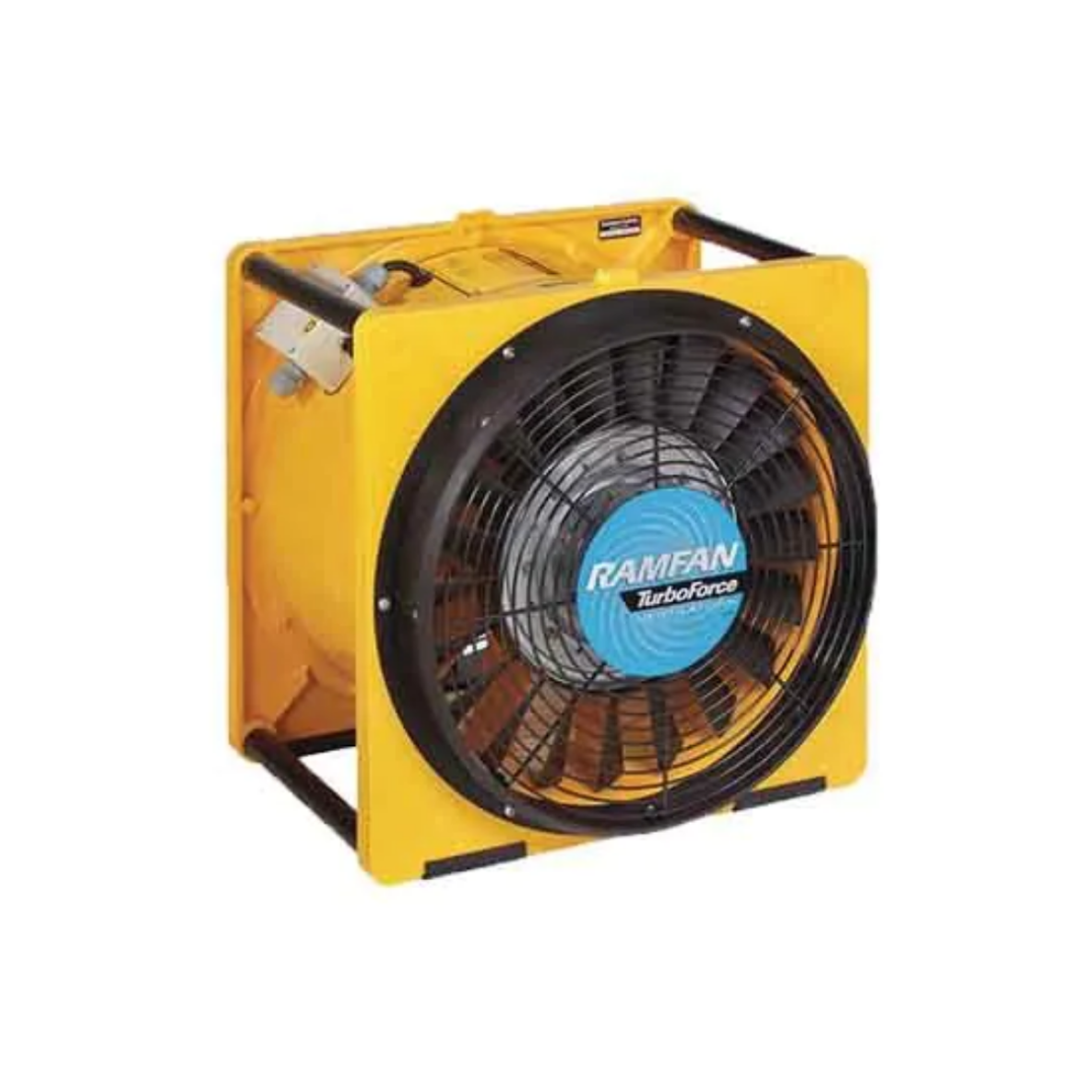

EFI 150 16" smoke extractor fan for large volumes
Description
The EFI 150 16-inch smoke extractor fan is designed for smoke removal, ventilation, and air extraction in large volumes or confined spaces. It enables both positive pressure ventilation and smoke extraction using spiral ducting, offering high versatility during emergency operations.
Equipped with a high-performance 17-blade cast aluminum turbine and a 1.1 kW electric motor, it delivers an airflow of up to 7,580 m³/h, ensuring rapid clearing of smoke-affected areas and improved safety conditions.
It can be used for fresh air supply (positive pressure ventilation) or for the extraction of smoke, dust, and toxic gases, making it ideal for firefighters, rescue services, industry, construction sites, tunnels, basements, and confined environments.
Its housing, made of high-strength ABS, is corrosion-resistant and chemical-resistant, ensuring durability in demanding environments. Multiple units can be connected together to increase overall performance.
Technical specifications
-
Diameter: 16" / 40 cm
-
Free air flow: 7,580 m³/h
-
Flow with 4.6 m duct + 90° elbow: 5,404 m³/h
-
Smoke control mode: positive pressure or extraction with spiral ducts
- Motor: electric 115 / 230 Vac 50/60 Hz
-
Power: 1.1 kW
- Current: 8 A / 40 A starting
- Turbine: 17 aluminum blades
-
Material: high-strength ABS
-
Protection rating: IP55
-
Operating temperature: -20°C to +40°C
-
Noise level: 90.2 dB at 1 m
- Dimensions: 480 x 460 x 410 mm
-
Weight: 25 kg
- Certification: CE
- Power cable: 4.6 m included
Caractéristiques
- Dimensions 48 x 46 x 41 cm
- Weight 25 kg
