343100

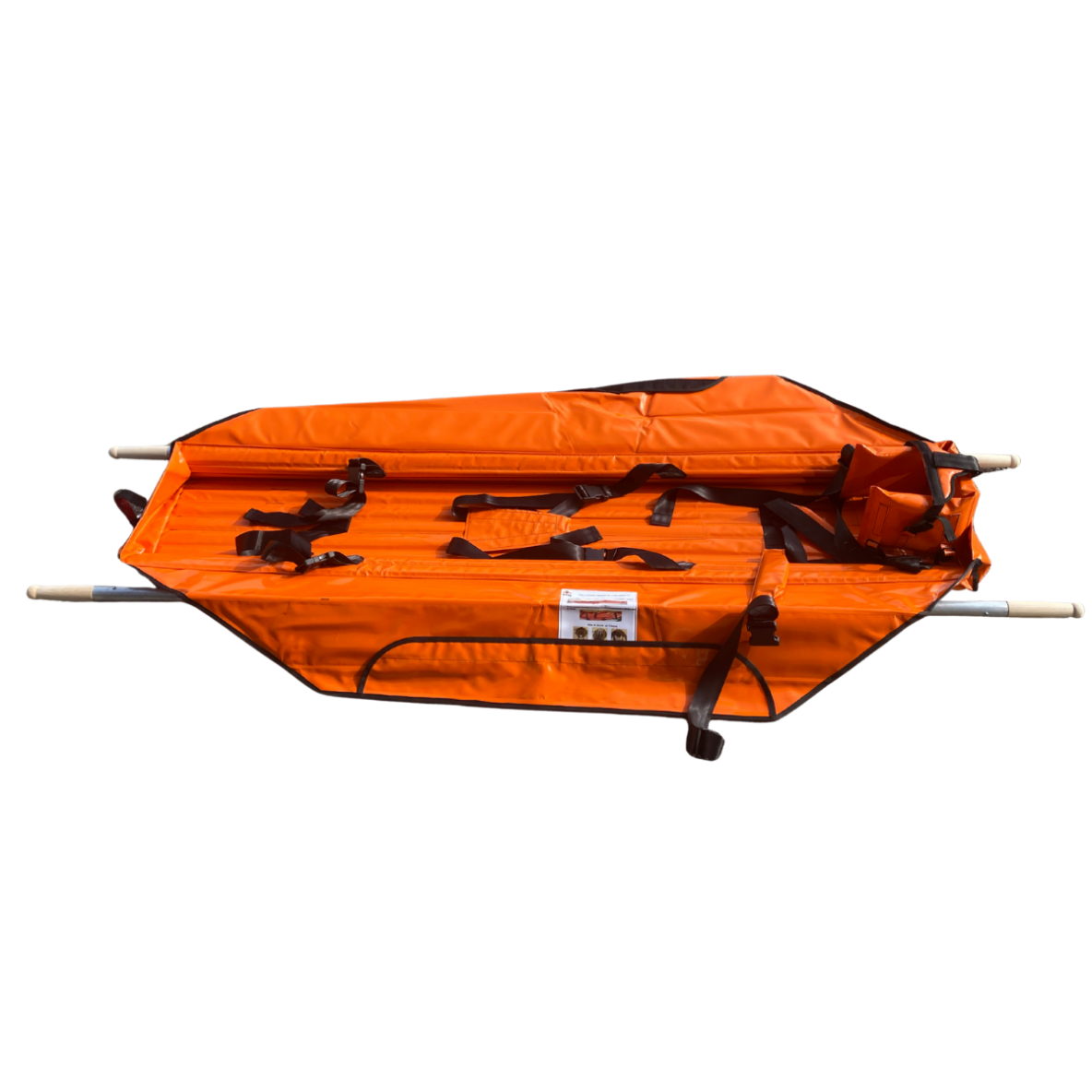

BELLISLE GUTTER STRETCHER WITH POLES
Bellisle Rescue Stretcher - Safe Victim Immobilization Stretcher
Description
The Bellisle stretcher is a rescue equipment designed to ensure secure immobilization of victims thanks to its gutter-shaped design. Its compact size facilitates evacuation through narrow passages and hard-to-access areas.
Commonly used on French Navy vessels, this stretcher combines lightness, strength, and safety to allow optimal victim transportation during rescue operations.
ROBUST CONSTRUCTION AND VICTIM PROTECTION
The stretcher cover is made of PVC-coated polyester fabric, reinforced longitudinally with stiffening slats integrated between the two layers.

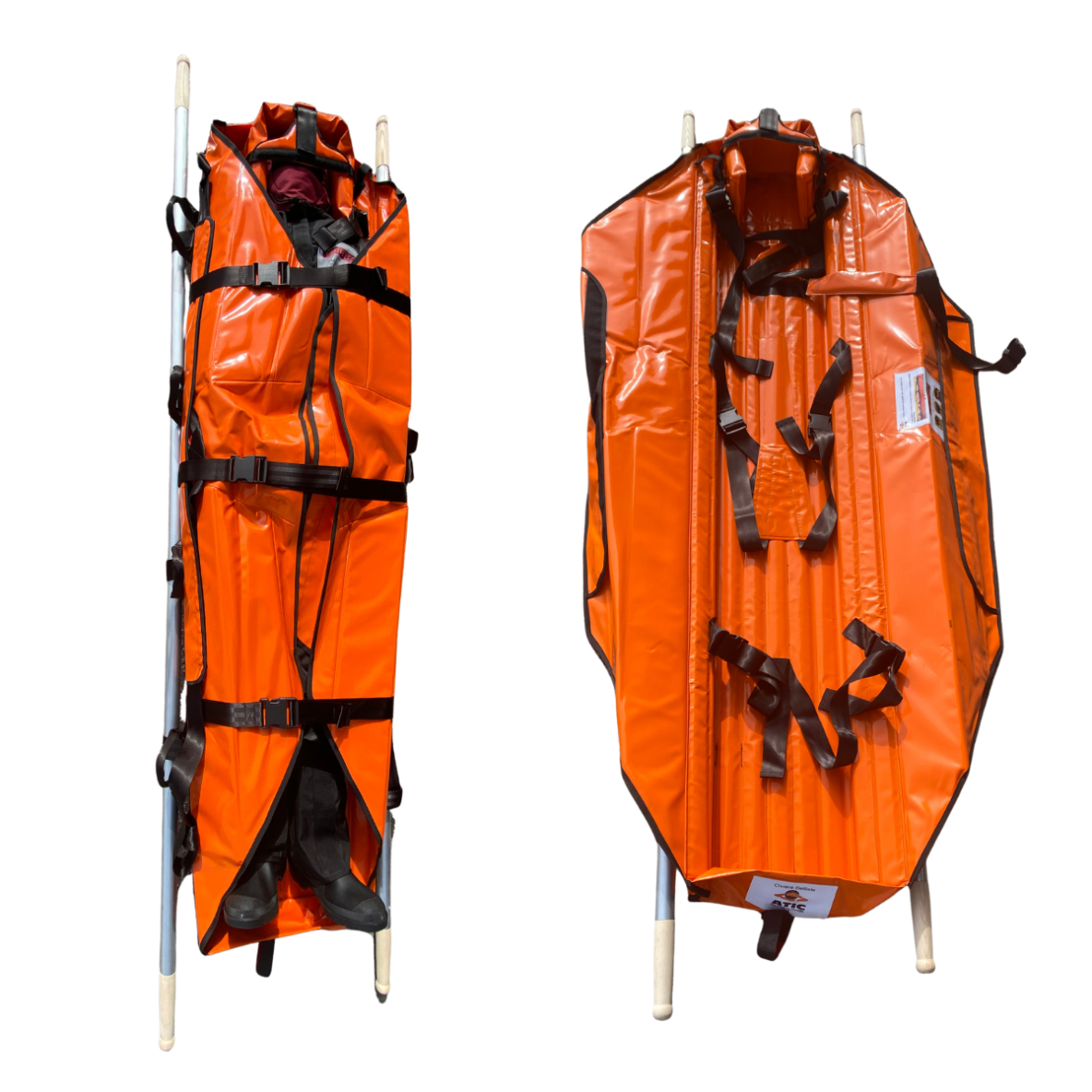

Closure is ensured by:
-
Longitudinal Velcro straps
- 3 transverse quick-buckle straps
This system provides effective shock protection while keeping the victim on a rigid surface, ensuring safety during transport.
SECURE RESTRAINT SYSTEM

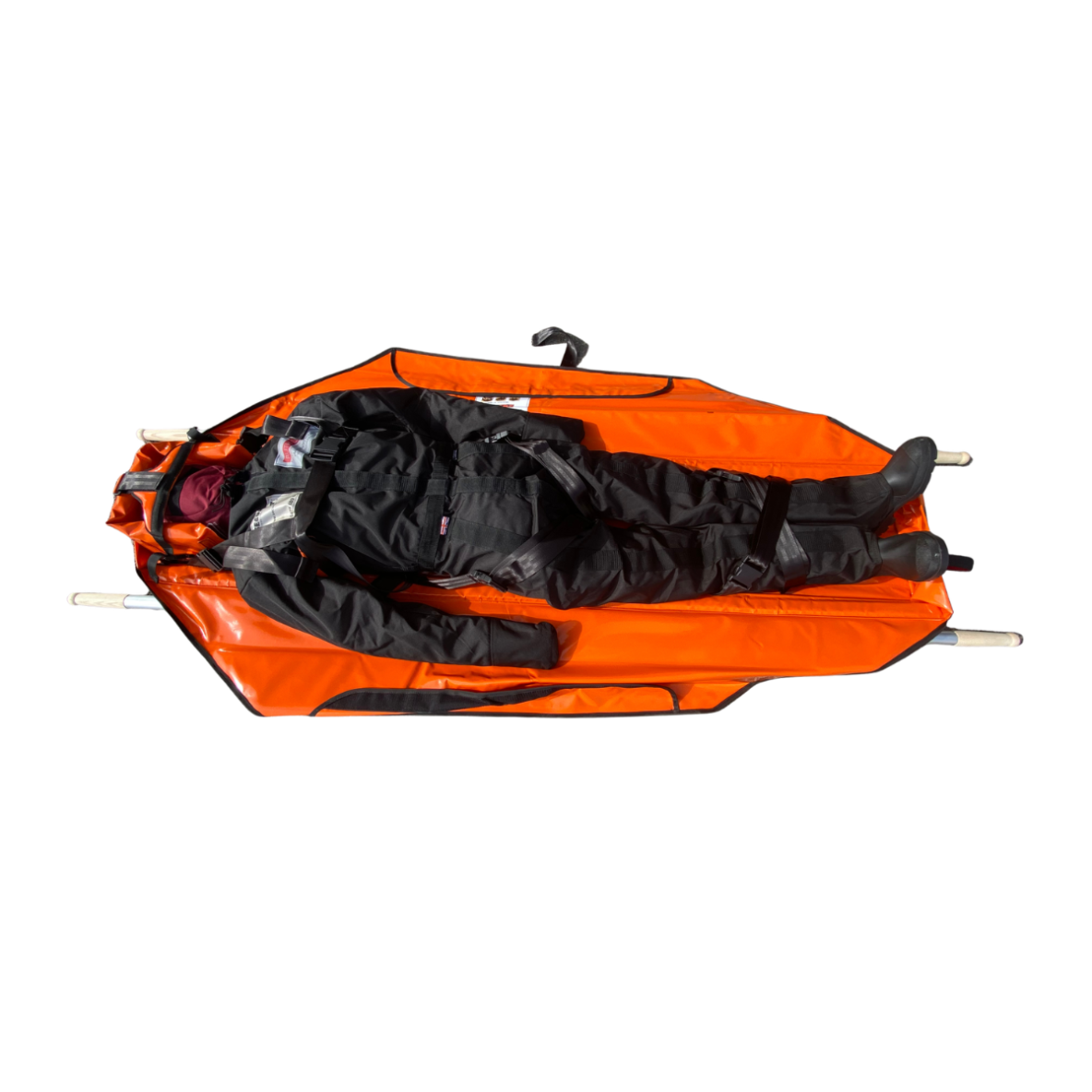

The Bellisle stretcher features an adjustable restraint system allowing the victim to be secured in different positions, ensuring reliable immobilization during evacuation.

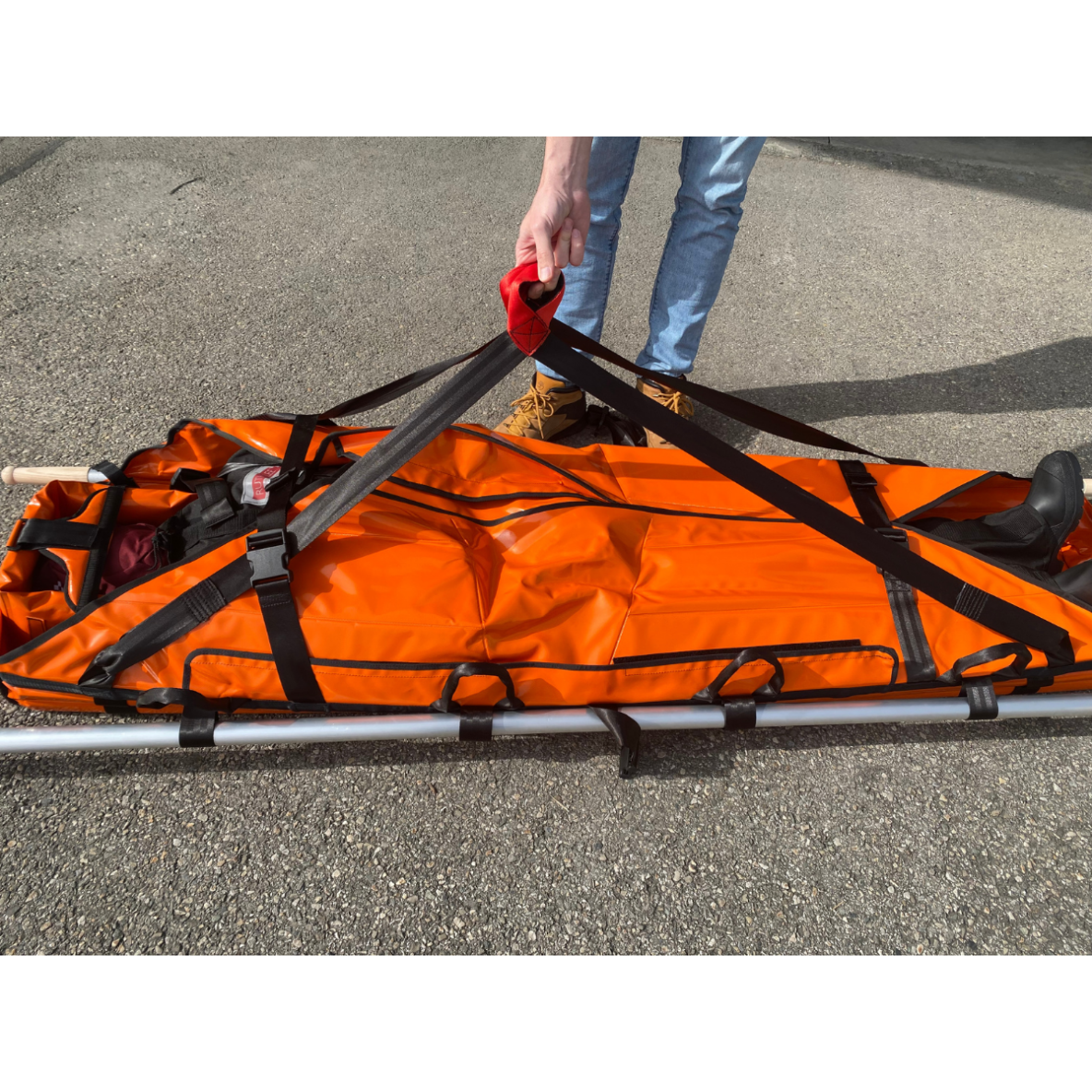

Carrying can be performed using:
-
Four side handles for easy handling
- Two removable poles for structured transportation
- Two longitudinal straps allowing stretcher winching
TECHNICAL SPECIFICATIONS
- Dimensions: 195 x 45 x 20 cm
-
Weight: 15 kg
- Pole length: 229 cm
-
Maximum load capacity: 120 kg
Regulatory classification :
Medical device Class I according to European Directive 93/42/EEC
Caractéristiques
- Dimensions 195 x 45 x 20 cm
- Weight 15 kg
- Longueur des hampes 229 cm
