FRANCO GARDA RESCUE STRETCHER

Name: FRANCO GARDA RESCUE STRETCHER
Brand: Securhit Group
SKU: .PFFG00
Availability: PreOrder

Franco Garda Rescue Stretcher - Versatile Helicopter Hoist Stretcher

.PFFG00 Dimensions

Télécharger en PDF

Description

The Franco Garda stretcher is a high-performance, versatile helicopter hoist rescue stretcher designed for casualty immobilization and evacuation directly at the rescue site. It is suitable for operations in mountain environments, vertical rescue, canyons, aquatic environments, and snowy terrain, providing a reliable solution for demanding rescue situations.

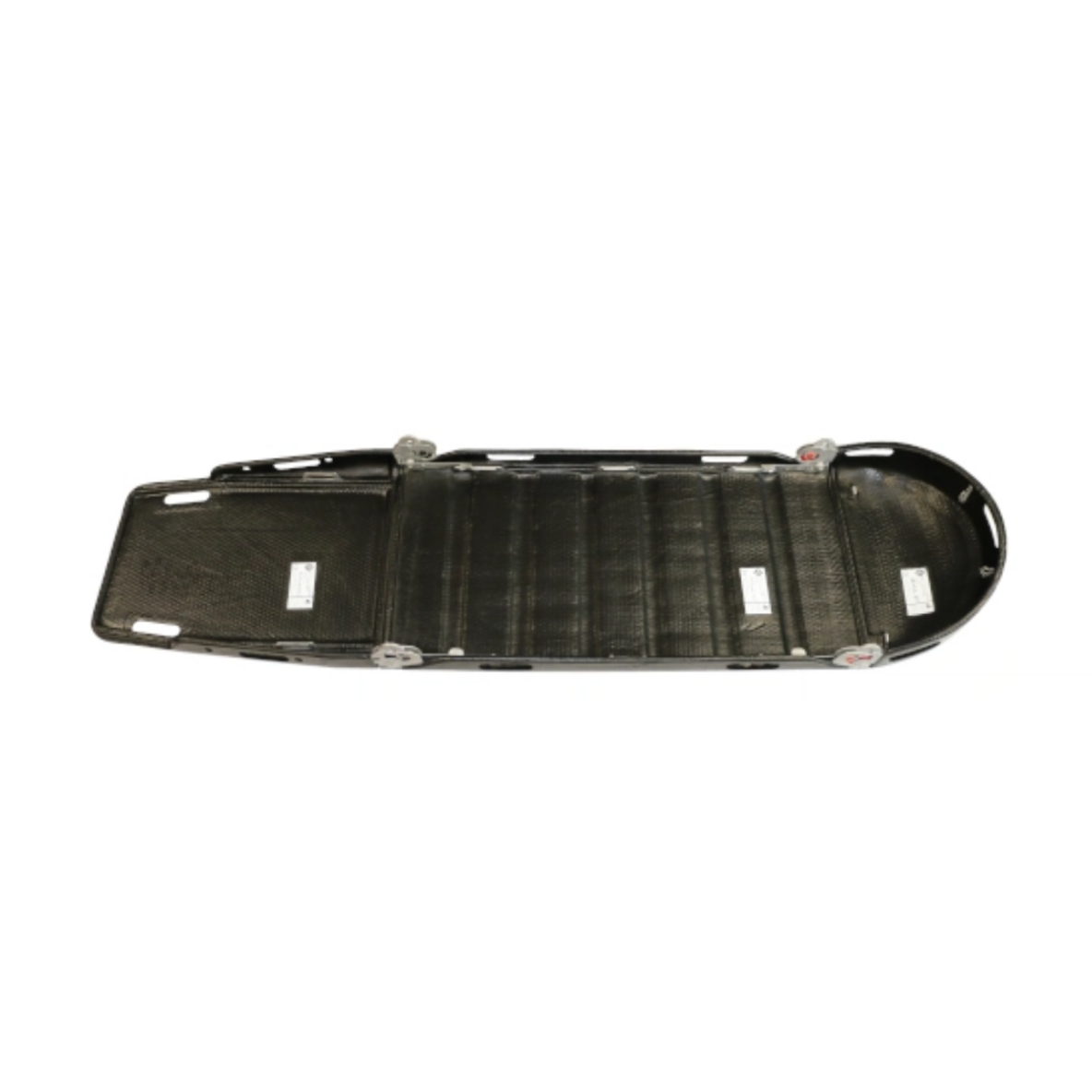

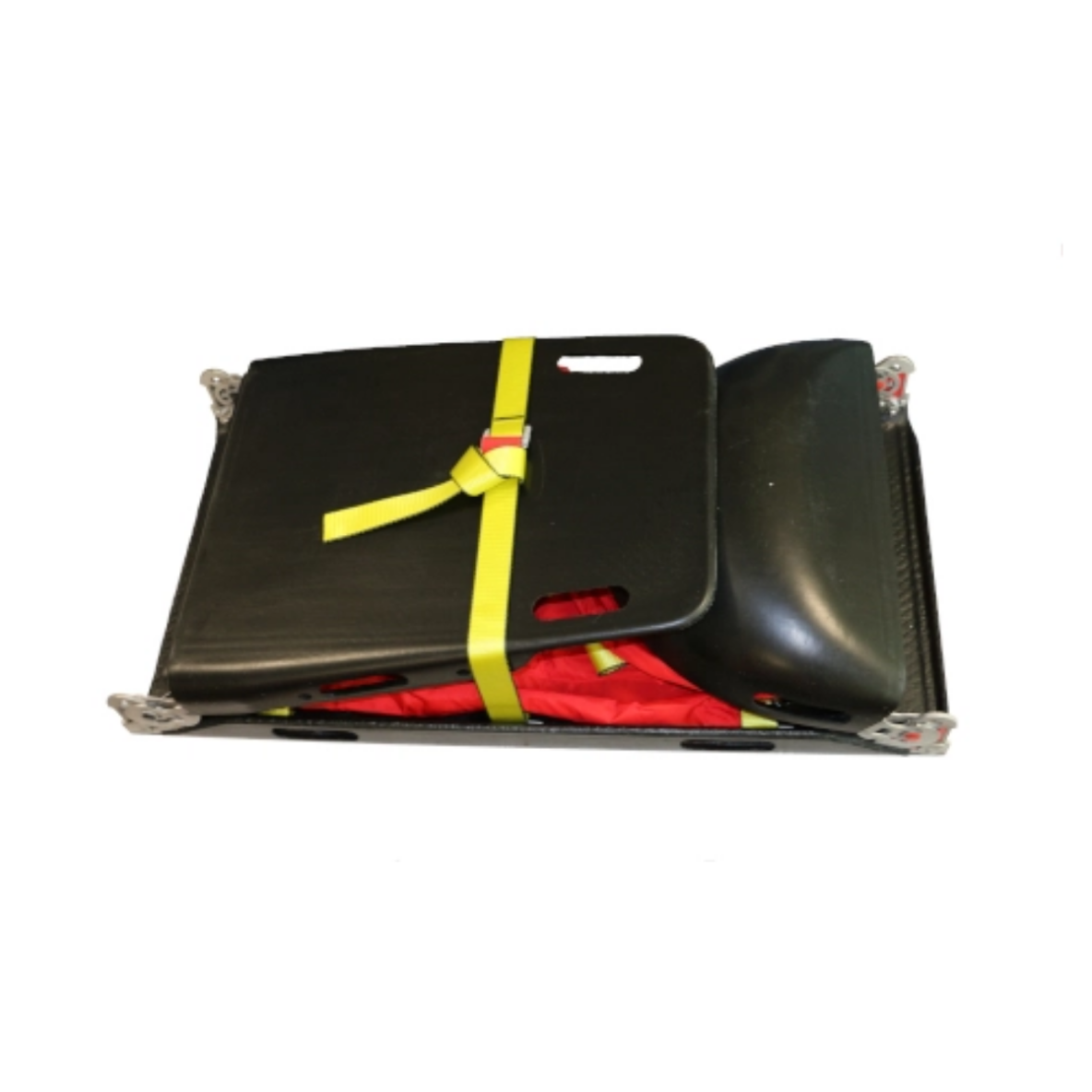

Its raised-edge shell, both lightweight and durable, consists of a stainless steel tubular frame covered with Twintex, a fiberglass/polypropylene composite material that ensures high strength while allowing the stretcher to slide easily over all types of terrain. The patented articulation system allows the stretcher to be folded or separated into three sections without tools and without detachable parts. This mechanism also ensures a secure double locking system, particularly during helicopter hoisting operations. The stretcher is approved for rescue operations with most helicopters.

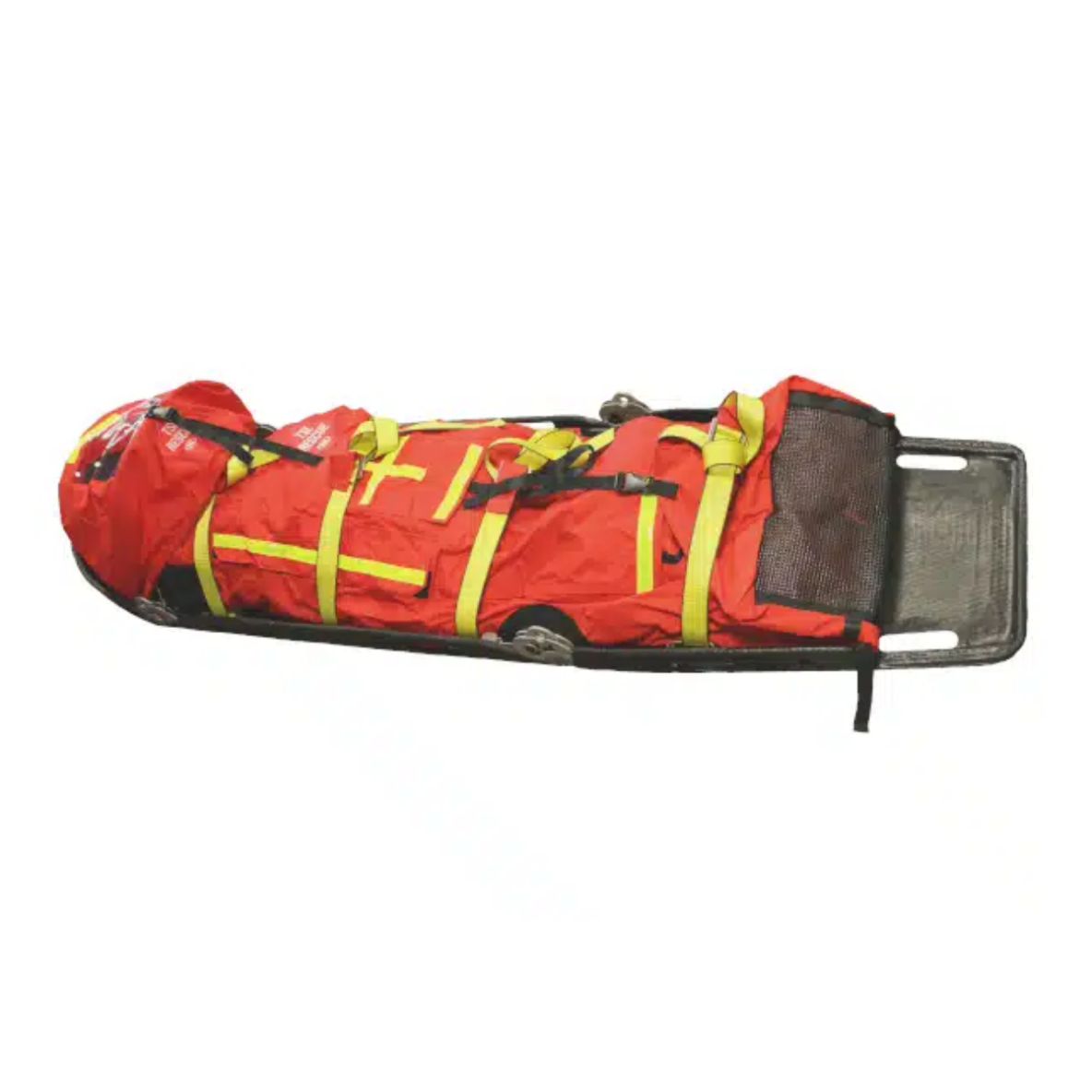

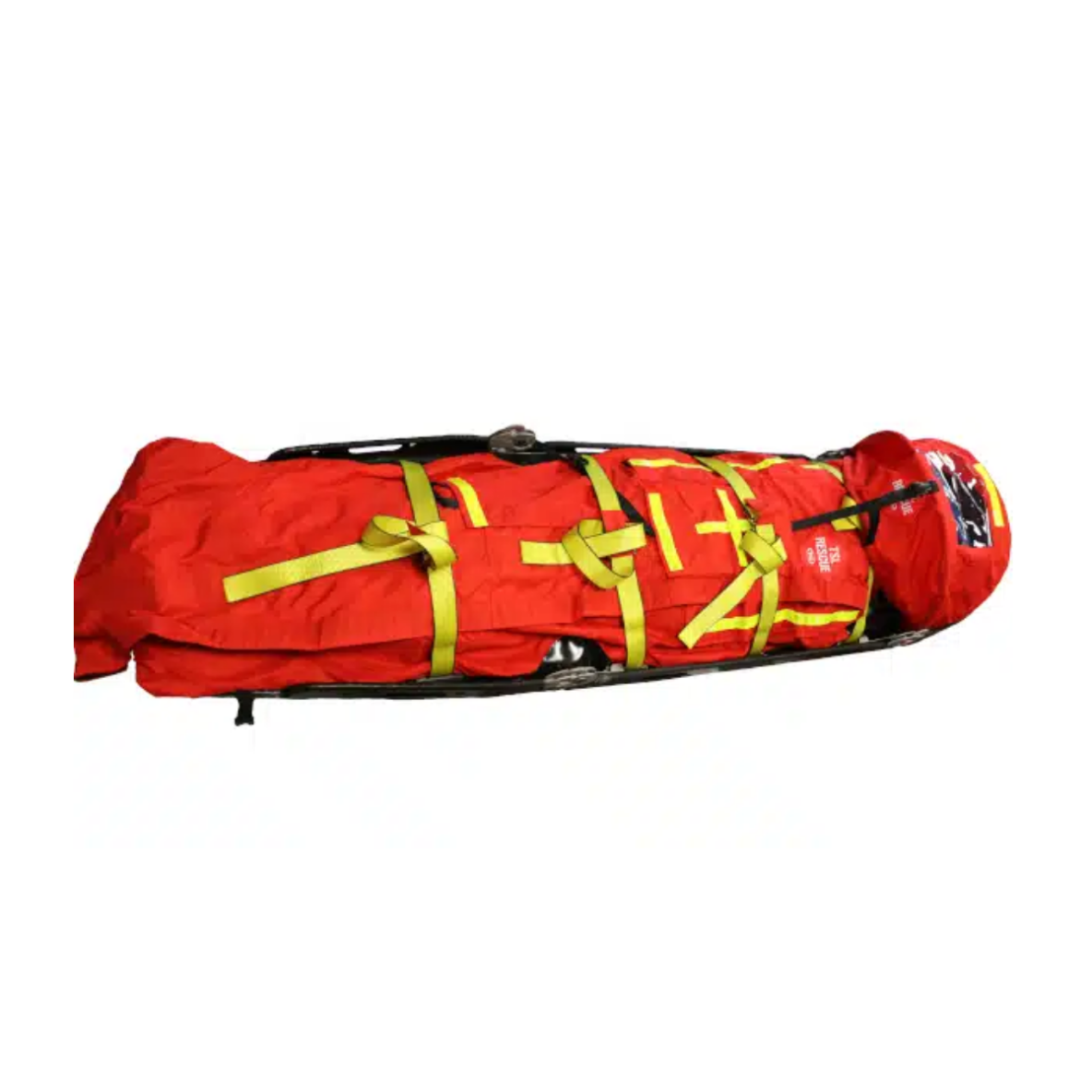

The Franco Garda stretcher is equipped with a complete medical cover including an effective patient immobilization system: adjustable headrest, padded thoracic supports, reinforced straps, and quick-access openings for the patients upper and lower limbs.

Standard Equipment
- Foldable and separable composite shell
- Complete medical cover with headrest
- 4 external securing straps

Optional Accessories
Standard sling, oblique sling, ground lifting bridle, mixed bridle, flotation kit, carrying arms and wheel, ski guidance system, anti-rotation fin.

Technical Specifications
185 cm Model
- Weight: 13.4 kg
- Dimensions: 185 x 54 cm
- Folded dimensions: 105 x 54 x 26 cm
- Load capacity: 1,200 kg

200 cm Model
- Weight: 13.8 kg
- Dimensions: 200 x 54 cm
- Folded dimensions: 105 x 54 x 26 cm
- Load capacity: 1,200 kg

The Franco Garda rescue stretcher combines strength, modularity, and safety, making it ideal for technical rescue operations in challenging environments.
