DUFLEX65/20R

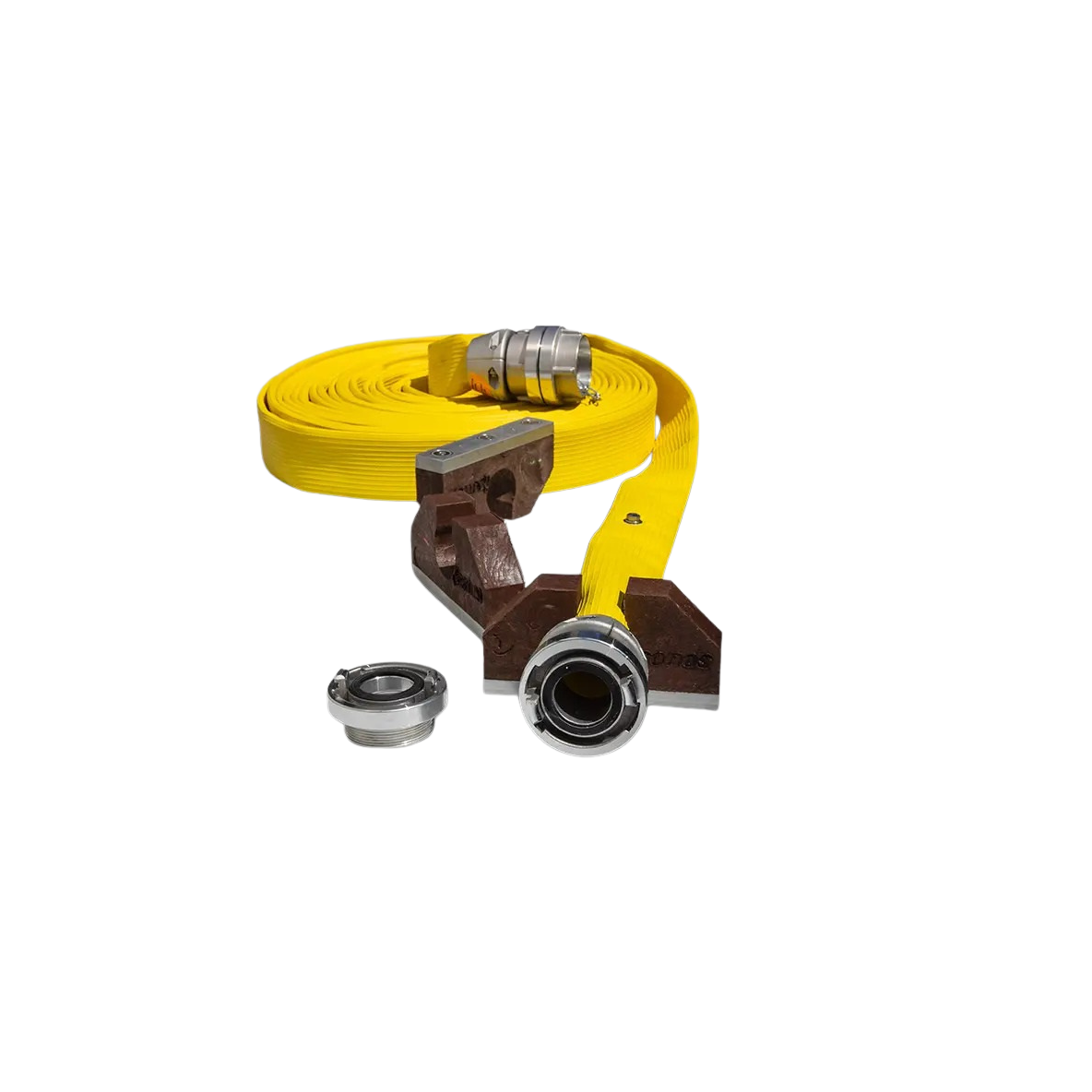

DURAFLEX WATER CURTAIN HOSE DN65-20M FITTING DSP65
Professional Water Curtain Hose for Fire Protection, Cooling and Decontamination
Description
The DURAFLEX DN65 Water Curtain Hose is a professional firefighting water curtain system designed to create a powerful and continuous water barrier for fire protection, cooling and emergency response. Durable, easy to deploy and highly effective, it provides rapid protection for personnel, vehicles and critical equipment exposed to heat and fire.

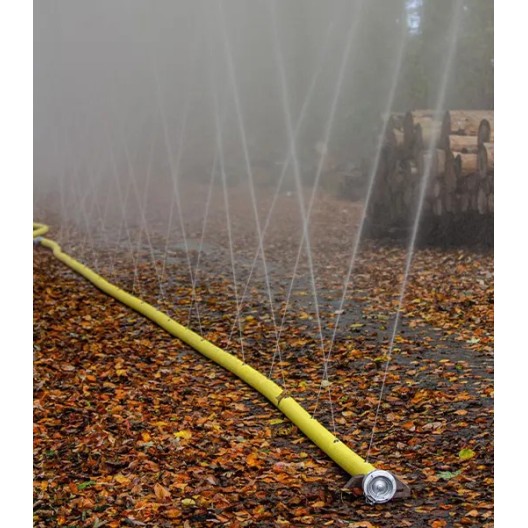

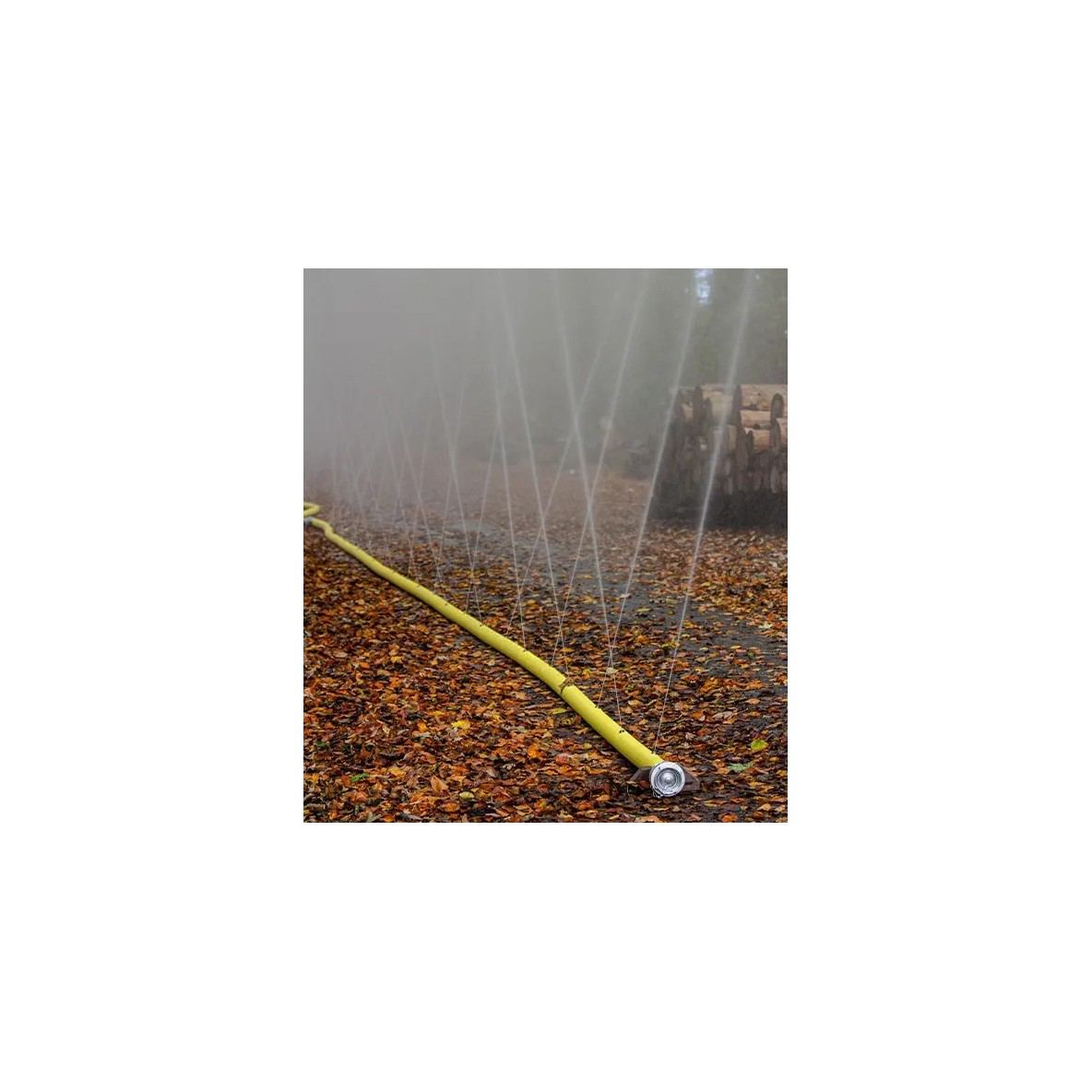

Equipped with 25 stainless steel spray nozzles and three V-shaped ground supports, the hose produces a high-performance water curtain capable of cooling fire apparatus, trucks, industrial machinery, emergency vehicles and other heat-exposed equipment.
The DURAFLEX water curtain hose is also ideal for dust suppression, gas and vapor containment, and vehicle or equipment decontamination. Its stable ground support system allows fast deployment and reliable operation on virtually any terrain.
Manufactured from chemical-resistant materials with stainless steel components, it is engineered for demanding use by fire departments, emergency response teams, industrial facilities and HAZMAT units.
Key Features
-
High-performance water curtain system for firefighting operations
-
Rapid deployment and easy operation
-
Effective cooling of vehicles, machinery and industrial equipment
- Suitable for dust suppression, gas and vapor containment
-
Ideal for decontamination operations
-
25 stainless steel 4 mm spray nozzles
- Three V-shaped ground supports for excellent stability
-
Chemical-resistant construction with corrosion-resistant stainless steel components
-
Supplied with Storz B75 couplings and DSP 65 adapters
Technical Specifications
-
Length: 20 m (65.6 ft)
-
Diameter: DN65 (65 mm)
- Couplings: Storz B75 with DSP 65 adapters
-
Working Pressure: 10 bar (145 psi)
-
Spray Nozzles: 25
-
Nozzle Diameter: 4 mm
- Nozzle Spacing: 80 cm (31.5 in)
-
Ground Supports: 3 V-shaped supports
-
Maximum Spray Height: 1012 m (3339 ft)
- Weight: 16 kg (35.3 lb)
-
Color: Red or yellow depending on availability
Water Flow Rate
- 4 bar: 360 L/min
-
6 bar: 790 L/min
- 8 bar: 880 L/min
-
10 bar: 920 L/min
Available Options
The DURAFLEX Water Curtain Hose can be supplied with different configurations to meet specific operational requirements:
-
Nozzle sizes: 3 mm, 6 mm, 3 × 3 mm, or 4 × 2.5 mm + 1 × 3 mm
- Available hose diameters: DN25, DN45 and DN110
Caractéristiques
- Length 20 m
- Diameter 60 mm
