.OP03373
WAFER SHUTTER
Emergency leak stopper for DN 45, DN 70 and DN 110 fire hoses.
Description

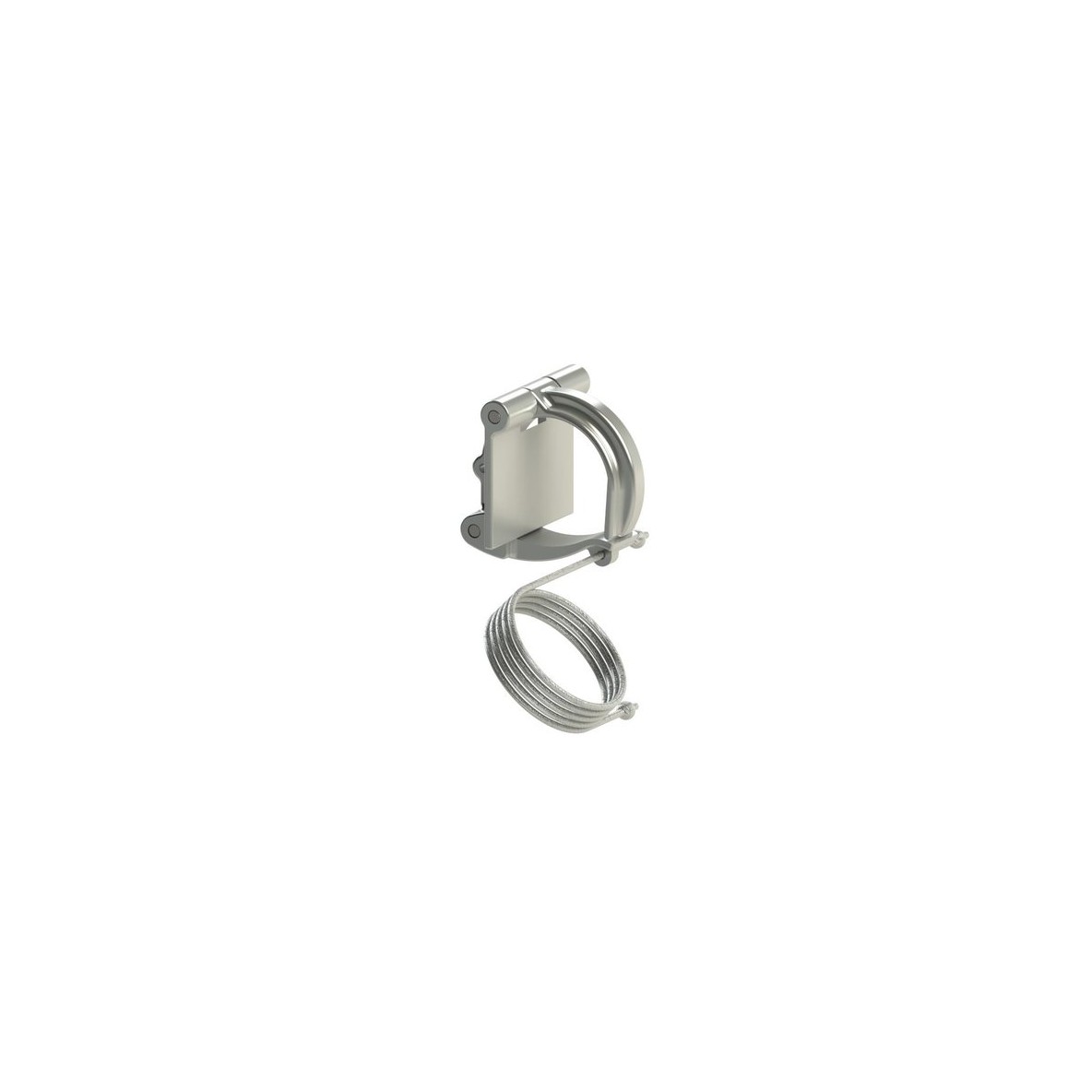

The plate-type leak stopper is designed to seal localized leaks in fire hoses without disconnecting the hose couplings. Made of A-S7G aluminium, it features a frame, a hinged plate and a cam-operated locking lever.
After depressurizing the hose, position the leak against the plate and close the locking lever. An eyelet allows a 3 mm cord to be attached to help prevent the stopper from slipping out of position when the hose is moved.
Technical Specifications
- Material: A-S7G aluminium
- Design: Frame with hinged plate
-
Locking mechanism: Cam-operated lever
-
Additional securing: Eyelet for a 3 mm cord
- Compatibility: DN 45, DN 70 and DN 110 fire hoses
-
Installation: No need to disconnect hose couplings; hose must be depressurized
Caractéristiques
- Material Aluminium
