GUP3/1.5EX

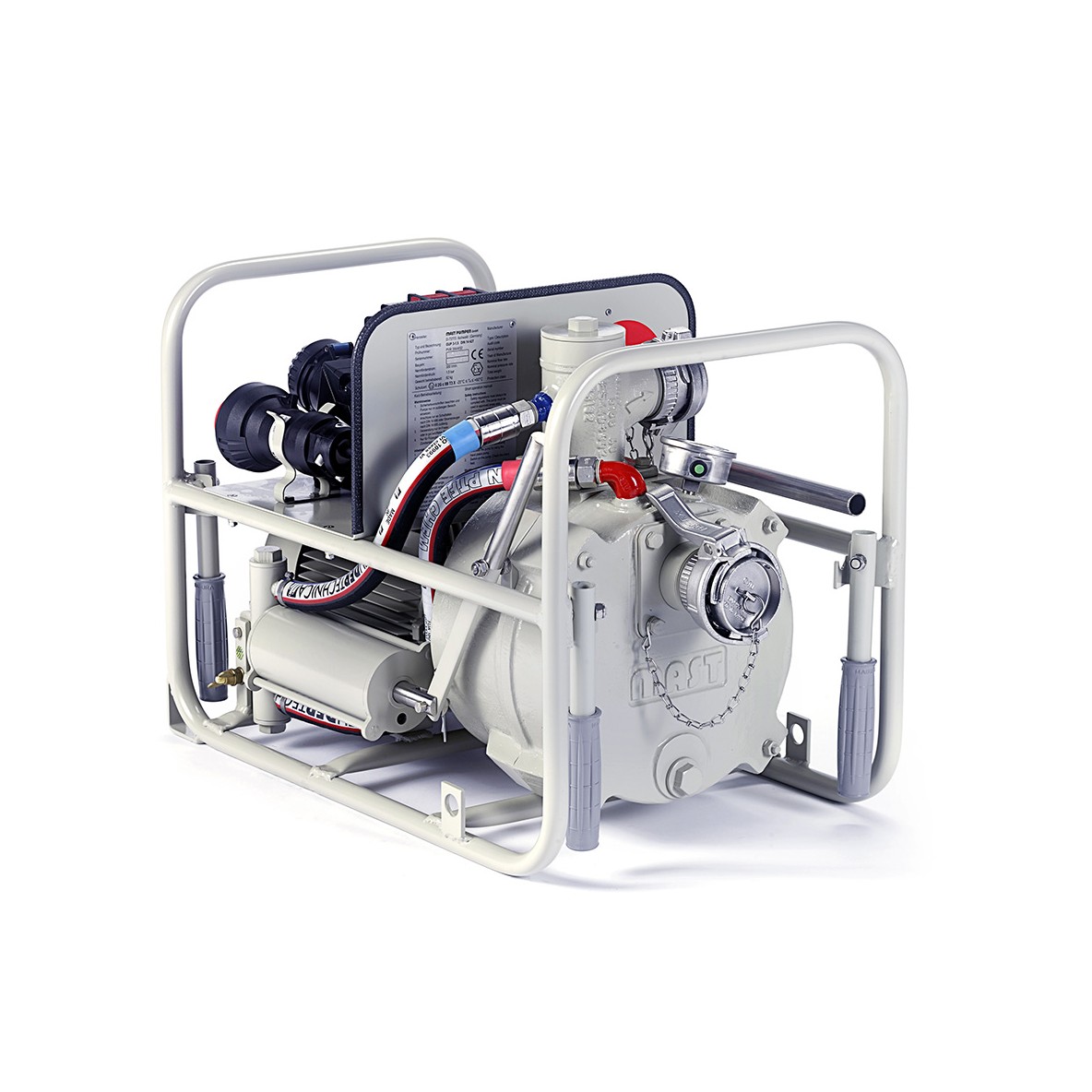

ELECTROPUMP STAINLESS STEEL CENTRIFUGE GUP3 - 1.5 ATEX
GUP3 - 1.5 ATEX Stainless Steel Centrifugal Electric Pump - Pump for Hazardous Liquids and Explosive Atmospheres
Description
The GUP3 - 1.5 ATEX stainless steel centrifugal electric pump is designed for the transfer of hazardous, flammable, and aggressive liquids in high-risk environments. ATEX certified, it is suitable for use in explosive atmospheres and confined areas (Zones 1 and 2), ensuring both safety and performance.
Robust and reliable, this three-phase pump is intended for industrial applications and demanding fluid transfer operations involving sensitive liquids.
Main applications
- Transfer of flammable liquids
-
Pumping of solvents, acids, and aggressive chemicals
-
Operation in ATEX Zones 1 and 2
-
Industrial and environmental high-risk applications
-
Handling of fluids with solids up to 10 mm
ATEX certification
Certified ATEX EEx II 2G c IIB T3, this pump is approved for use in explosive atmospheres, ensuring a high level of safety in hazardous working environments.
Technical and general specifications
-
Type: three-phase centrifugal electric pump
-
Power supply: 3~ 400 V / 50 Hz
-
Power: 3 kW (4.55 A)

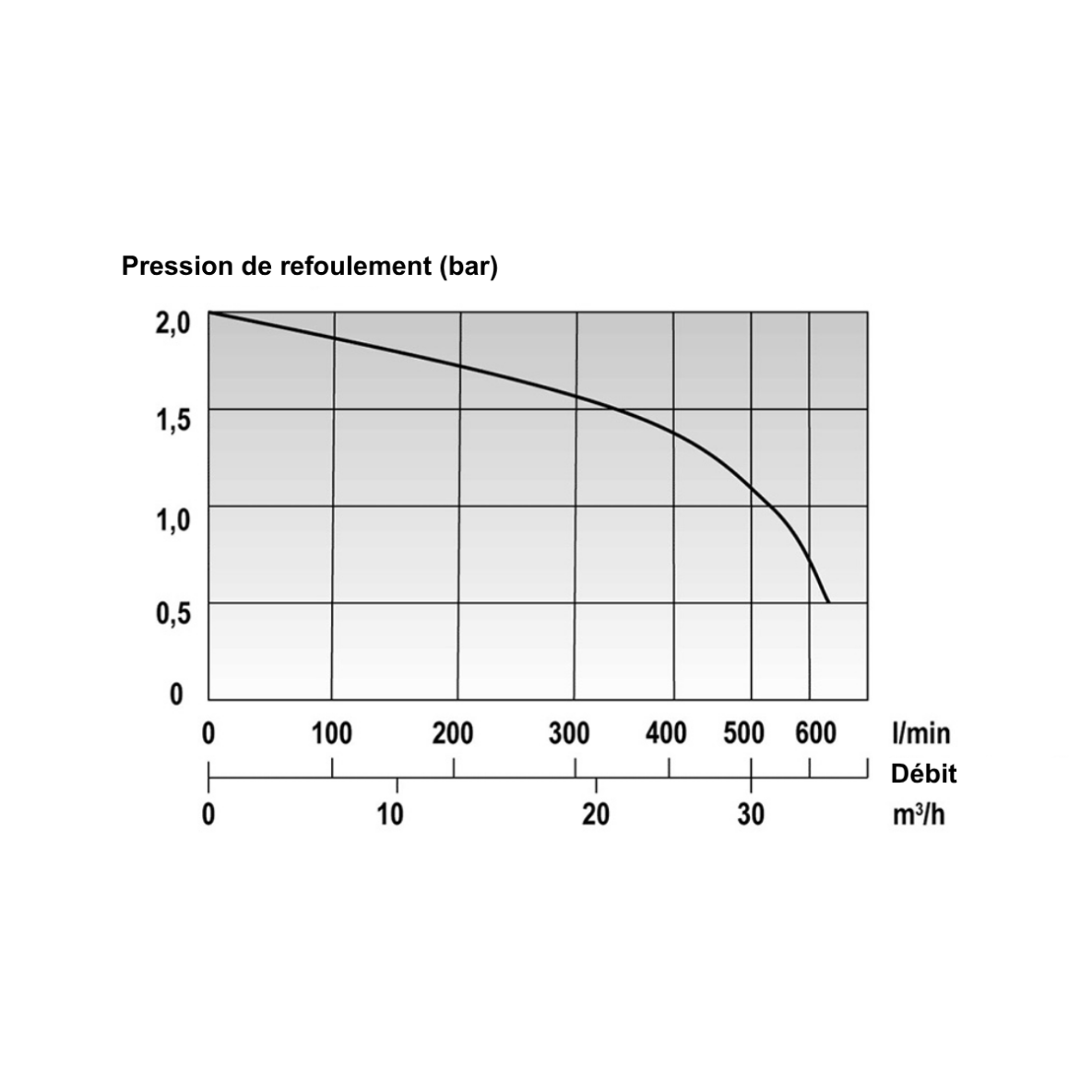

- Maximum flow rate: 620 l/min
- Maximum pressure: 2 bar
-
Maximum suction head: 8.4 m
-
Maximum particle size: 10 mm
-
Materials: stainless steel V4A (pump body, shaft, volute)
- Fasteners: stainless steel V2A
-
Connections: 2" threaded inlet/outlet, compatible with Camlock, Storz or symmetrical couplings (on request)
- Dimensions: 62 x 39 x 46 cm
-
Weight: 81 kg
Performance and durability
The GUP3 - 1.5 ATEX delivers a high flow rate of up to 620 l/min, ensuring fast and efficient fluid transfer. Its stainless steel construction provides excellent resistance to corrosion and aggressive chemicals, even under intensive use.
The GUP3 - 1.5 ATEX stainless steel centrifugal electric pump is a safe and high-performance solution for handling hazardous liquids in demanding industrial environments and ATEX-rated zones.
Caractéristiques
- Dimensions 62 x 39 x 46 cm
- Weight 81 kg
- Maximum flow 620 l/min
