ACCESSORIES FOR PLUGY AND PLUGSY INFLATABLE PLUGS

PLUGY & PLUGSY Accessories Inflatable Plug Inflation and Control

.AO Accessoires Obturateurs Gonflables

Télécharger en PDF

Description

To ensure precise, safe, and efficient inflation, PLUGY and PLUGSY inflatable plugs can be used with a complete range of specially designed accessories. These tools allow you to control pressure, supply air to the plugs, and facilitate field operations.

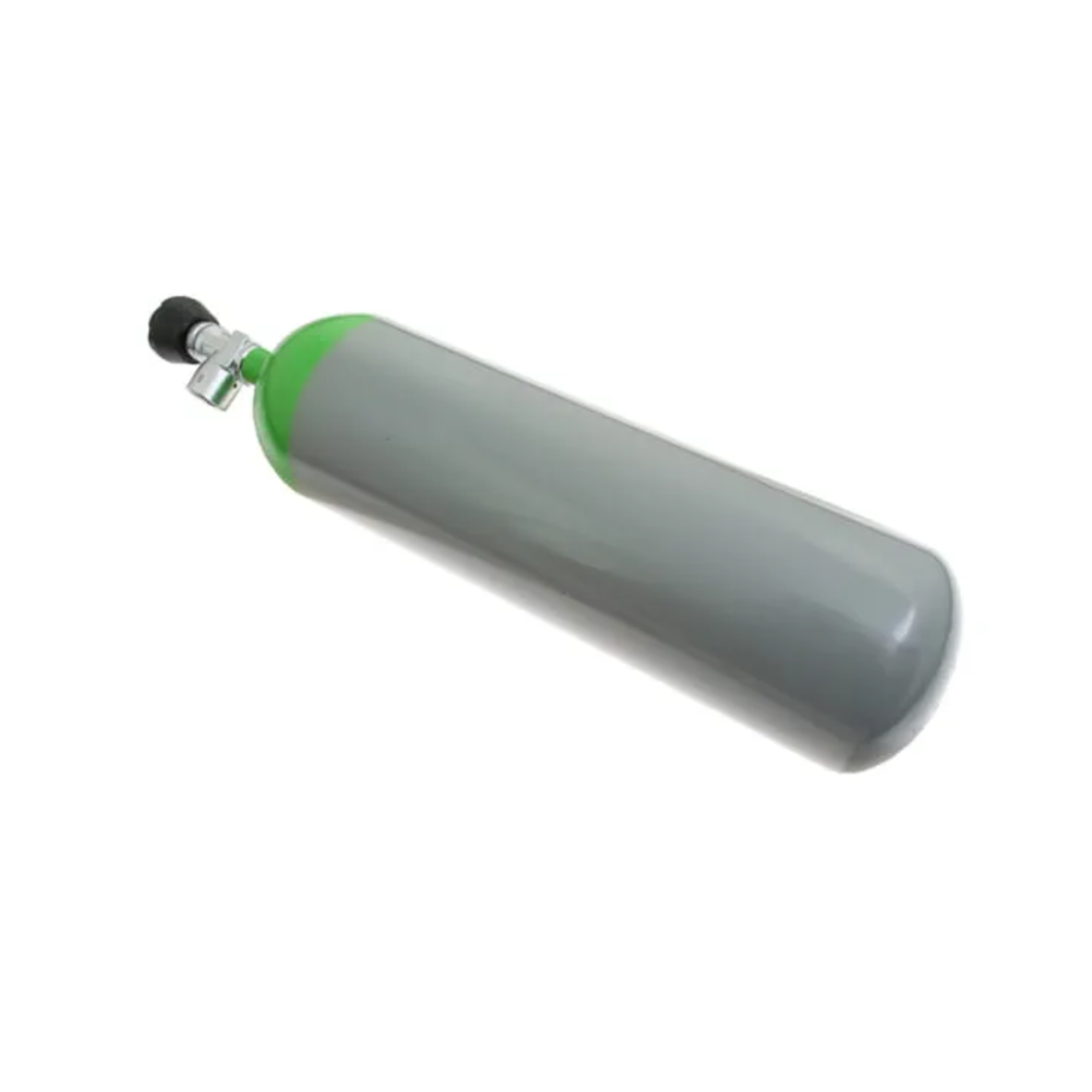

COMPRESSED AIR BOTTLE
The compressed air bottle provides a reliable and safe air supply for your plugs.
- Maximum pressure: 300 bar (4350 psi)
- Capacity: 6 L (366 cu.in.)
- Weight: 9.0 kg (20 lbs)
- Ideal for precise and safe inflation of PLUGY and PLUGSY plugs

PRESSURE REDUCER (REGULATOR)
The pressure reducer ensures controlled and safe air supply for optimal inflation.
- Output pressure: 8 bar (116 psi)
- Input pressure: 200 / 300 bar (2900 / 4350 psi)
- Weight: 2.2 kg (4.9 lbs)
- Compatible with all PLUGY and PLUGSY inflatable plugs

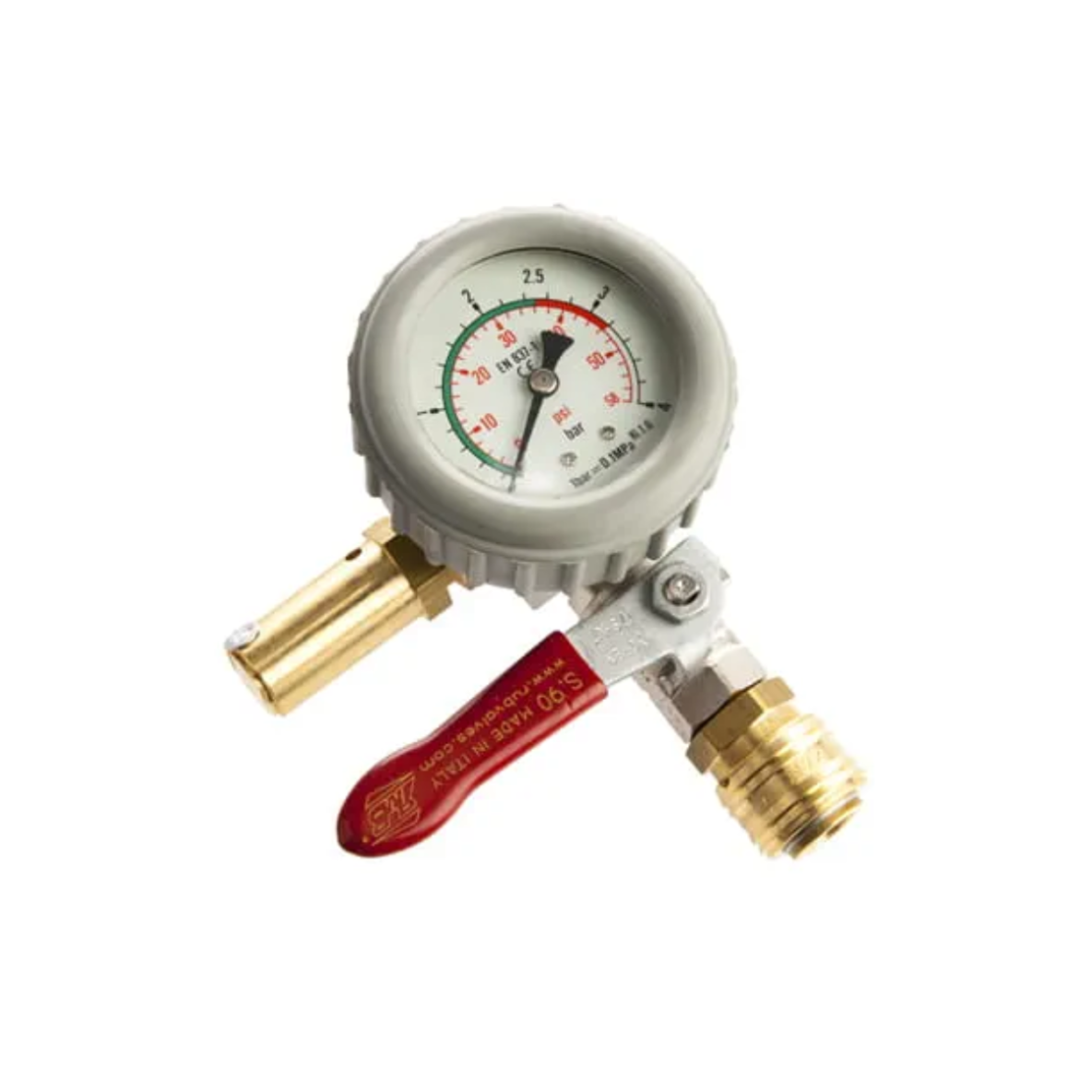

SINGLE-FITTING CONTROL UNIT
The control unit allows for precise inflation and pressure control.
- Weight: 0.9 kg (2 lbs)
- Output pressure: 1 / 1.5 / 2.5 bar depending on the plug model
- Quick and easy to use thanks to its single-fitting design
- Compatible with all PLUGY and PLUGSY inflatable plugs

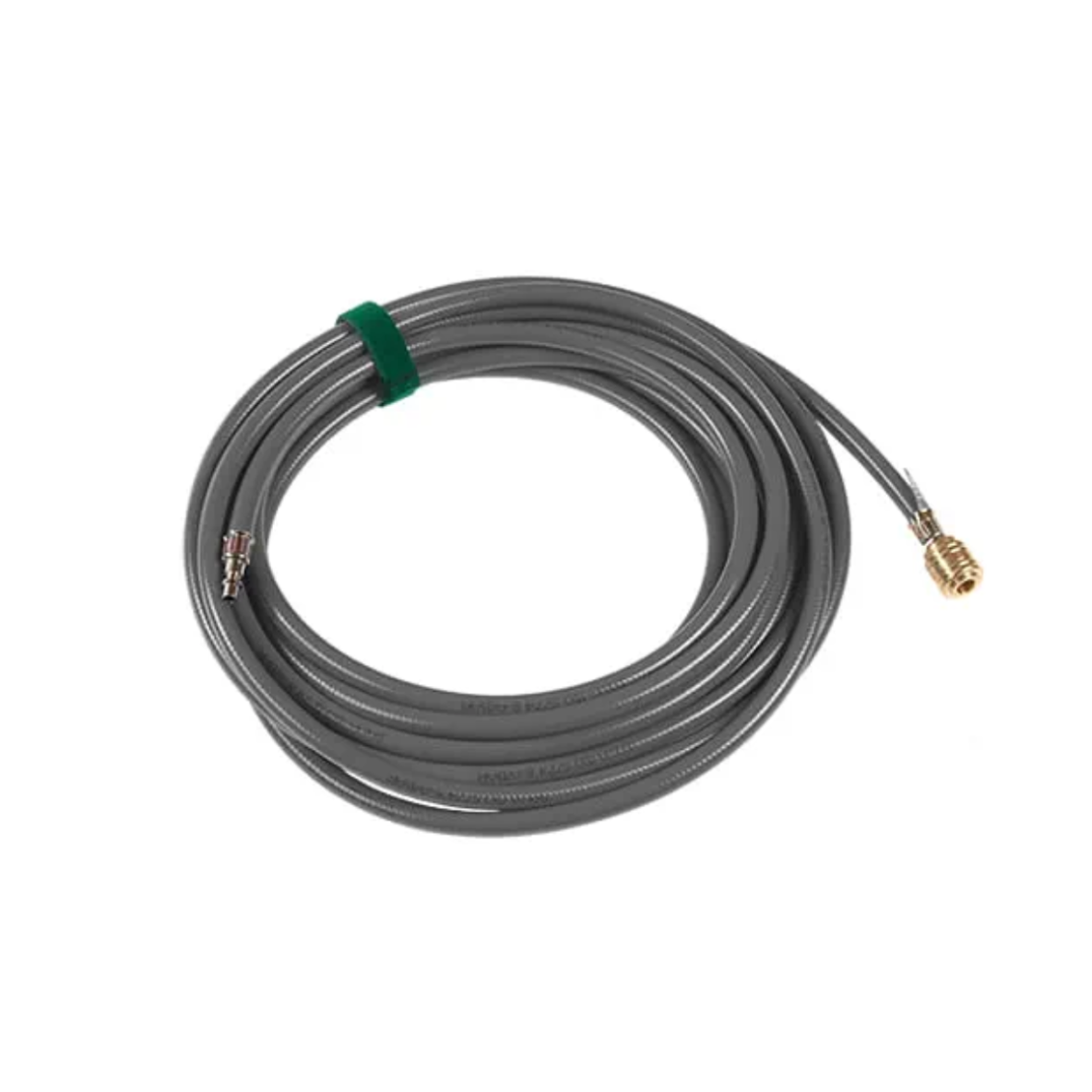

INFLATION HOSE
The inflation hose allows you to connect the plugs to the air source safely, even in challenging environments.
- Length: 10 m (33 ft)
- Weight: 1.2 kg (2.6 lbs)
- Pressure: 1 / 1.5 / 2.5 bar depending on the plug model

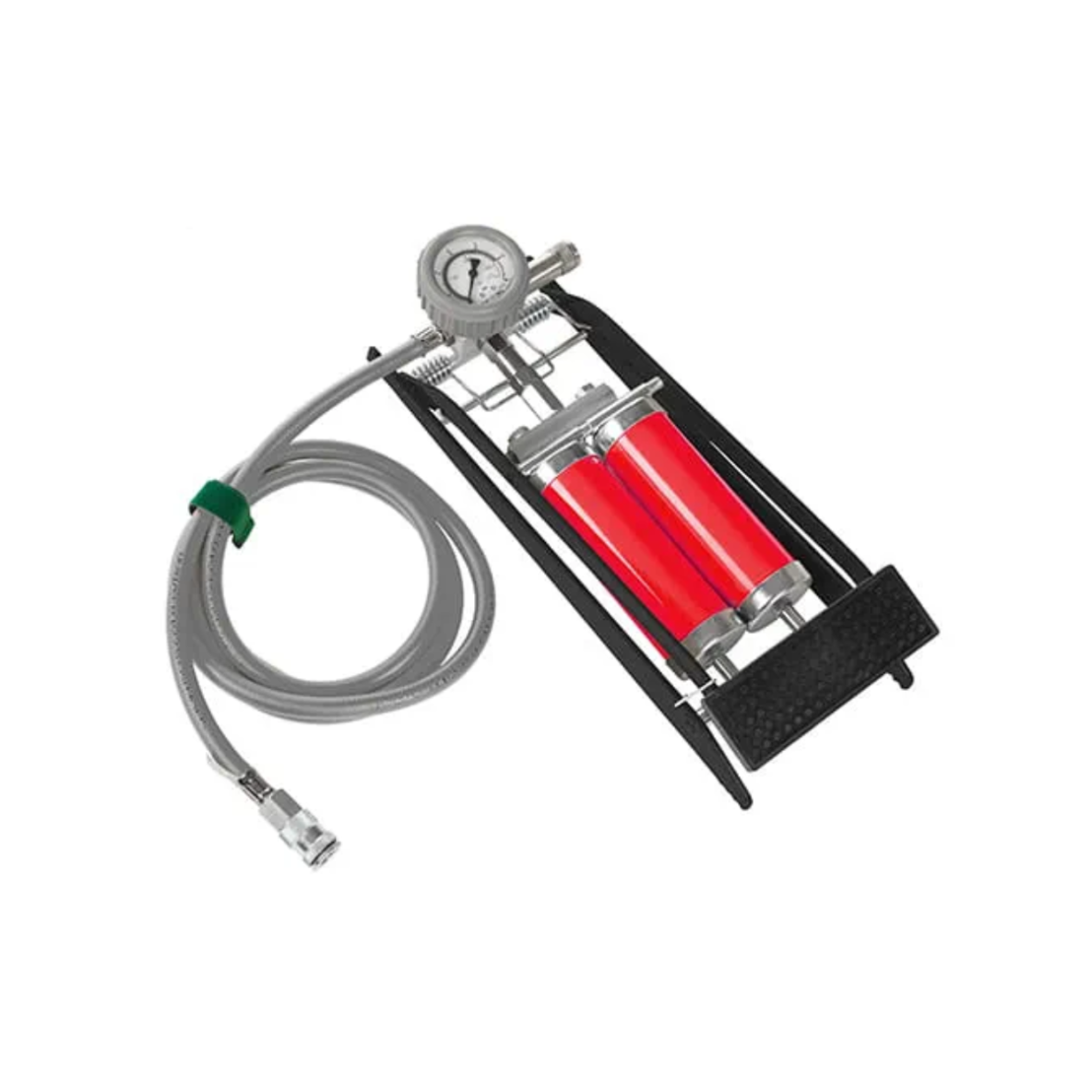

FOOT PUMP WITH SAFETY VALVE
The foot pump is a practical tool for safe manual inflation, equipped with a 2.5 bar safety valve to protect both the plug and the operator.

These PLUGY and PLUGSY accessories ensure safe, fast, and efficient use of inflatable plugs, offering precision, performance, and flexibility for all your operations.
