.NCS10

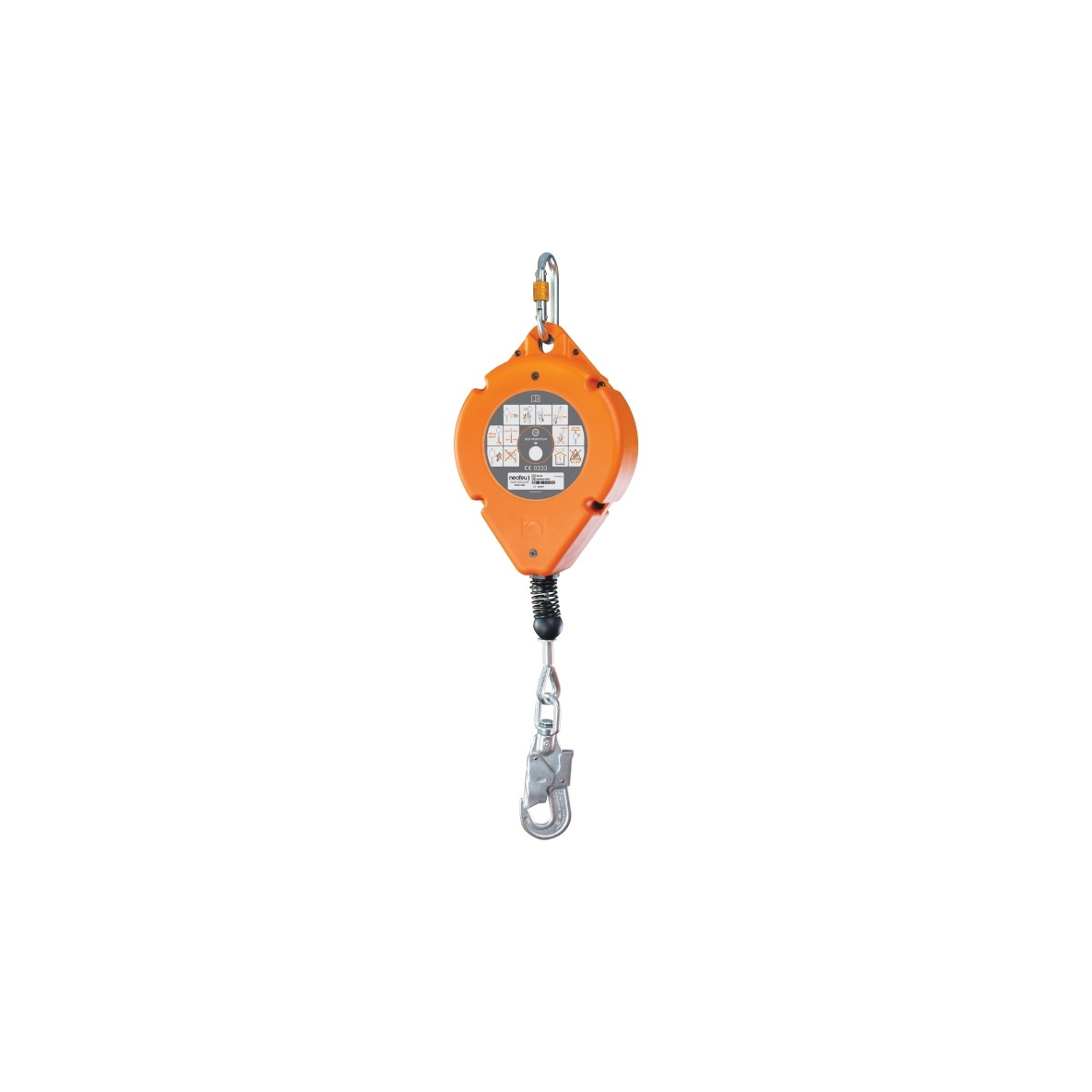

RETRACTABLE TYPE FALL ARRESTER
Fall arrester fitted with retractable cable lanyard
Description
Fall arrester fitted with retractable cable lanyard and with a braking system with two pawls for immediate locking in case of fall. It includes an integrated kinetic energy dissipating element.
TECHNICAL SPECIFICATIONS:
Lanyard in galvanized steel cable Ø 4 mm for lengths 5 and 10 m, Ø 5 mm for lengths 15 and 20 m
High resistance synthetic housing (NCS15/NCS20)
High resistance synthetic housing with fiber glass (NCS5/NCS10)
Corrosion treated components
Static resistance ? 1200 daN
Arrest force < 600 daN
Minimum clearance : 2,6 m (NCS5 /10) and 2,7 m (NCS15 /20)
Anchor connector with manual locking, opening 18 mm
Swivel hook connector with automatic loncking on cable end, opening 20 mm with fall indicator
NCS5 Retractable type fall arrester 5m: 335 x 200 x 84 mm - 4,7 kg
NCS10 - Retractable type fall arrester 10 m: 335 x 200 x 84 mm - 5,0 kg
NCS15 - Retractable type fall arrester 15 m: 410 x 250 x 96 mm - 9,2 kg
NCS20 - Retractable type fall arrester 20 m: 410 x 250 x 96 mm 9,5 kg
Caractéristiques
- Norme VG11.062
- Masse utilisateur maximale 140 kg
