113030000

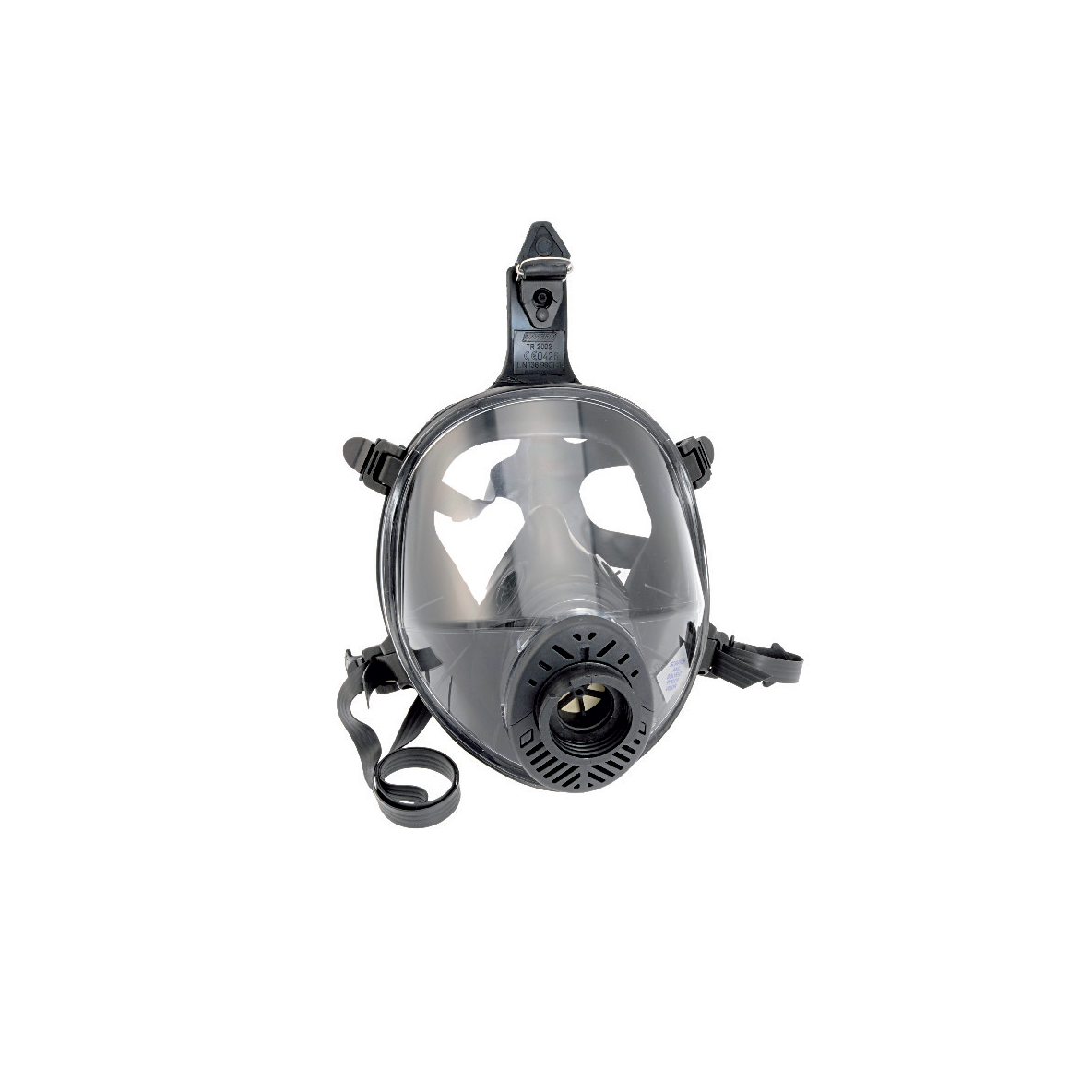

Filtering Mask TR 2002 CL3 with 5-Point Harness RD40
Masque filtrant classe 3 à pression négative pour filtres RD40
Description
The mask consists of the following components:
Outer skirt with a double sealing lip, ergonomic design, and flange.
Panoramic eye shield providing a wide field of vision.
Connector group that integrates the expiration membrane, sound capsule, sealing ring/valve seat, and inhalation valve into a single housing.
Inner half-mask.
Five-point harness.
Shoulder strap.
Usage:
This mask is compatible with negative pressure respirators equipped with a threaded connector according to EN 148-1, such as filters, compressed air supply systems, assisted respirators, etc.
Technical Data:
Regarding respiratory resistance, the measurements are as follows:
For a test flow rate of 25 cycles per minute with 2 liters per cycle, the maximum inspiratory pressure is 2.5 mbar, measured at 1.30 mbar, and the maximum expiratory pressure is 3.0 mbar, measured at 1.8 mbar.
At a flow rate of 30 liters per minute, the inspiratory pressure is 0.5 mbar and the expiratory pressure is 0.15 mbar.
At a flow rate of 95 liters per minute, the inspiratory pressure is 1.5 mbar and the expiratory pressure is 0.60 mbar.
For inward leakage, the maximum permitted leakage for NaCl aerosol is 0.05%, with a measured penetration of 0.0013%.
Classification:
This is a full-face mask of Class 3 according to the EN 136:1998 standard and complies with the requirements of Regulation (EU) 2016/425.
Materials:
The materials used in the manufacture of the mask are as follows:
Face skirt: EPDM
Eye shield: Scratch-resistant and solvent-resistant polycarbonate
Harness: EPDM
Inner half-mask: TPE
Shoulder strap: PVC
Storage:
The mask should be stored between -20 °C and +50 °C with a relative humidity below 80%.
Weight:
The approximate weight of the mask is 630 grams.
Dimensions and Packaging:
The mask is packaged in a polyethylene bag placed in a cardboard box with dimensions of 250 x 190 x 140 mm. Masks are delivered in multiple boxes containing 6 pieces, with dimensions of 510 x 440 x 210 mm.
Caractéristiques
- Weight 630 gr
- Norme EN 148-1
